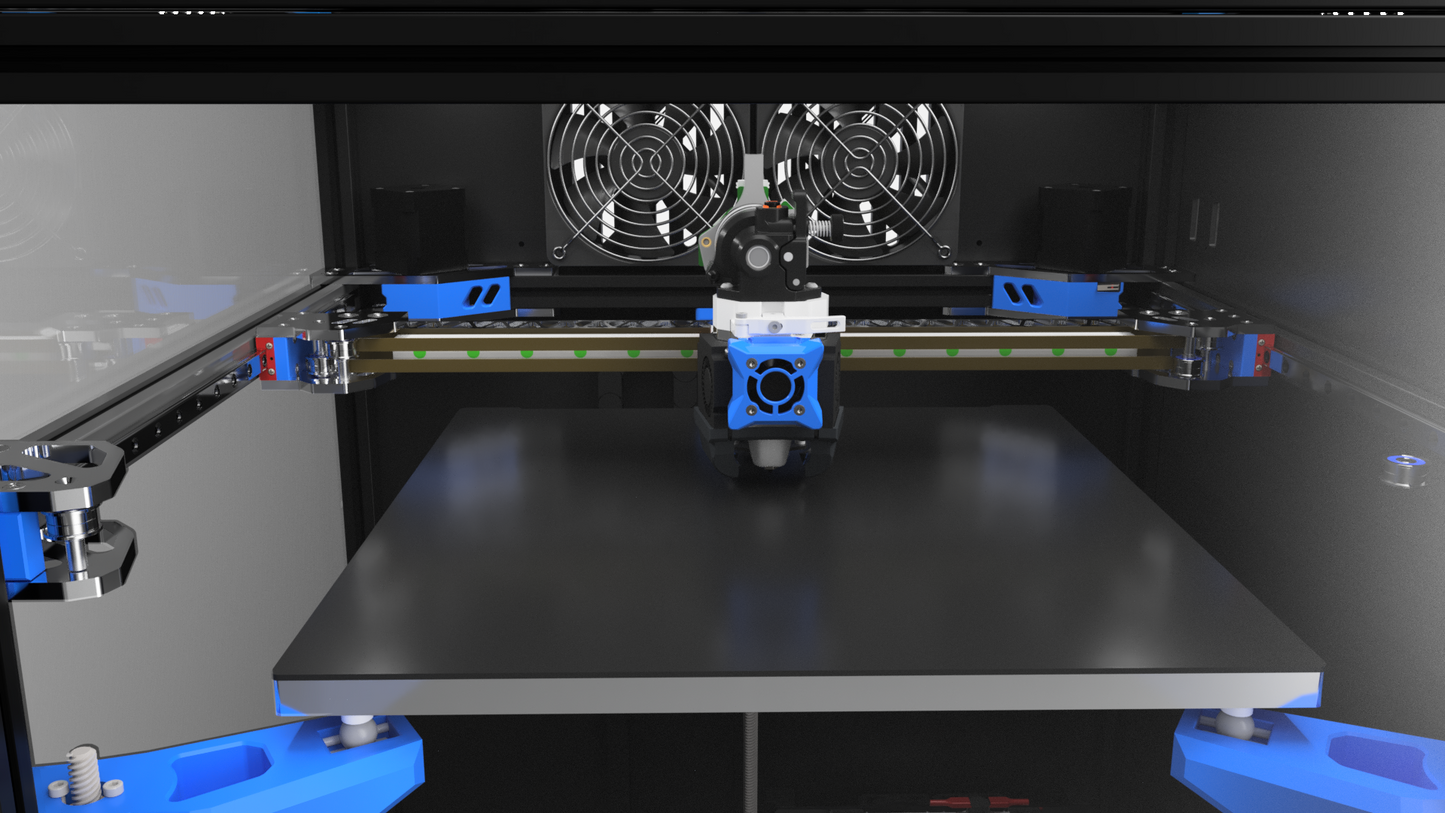

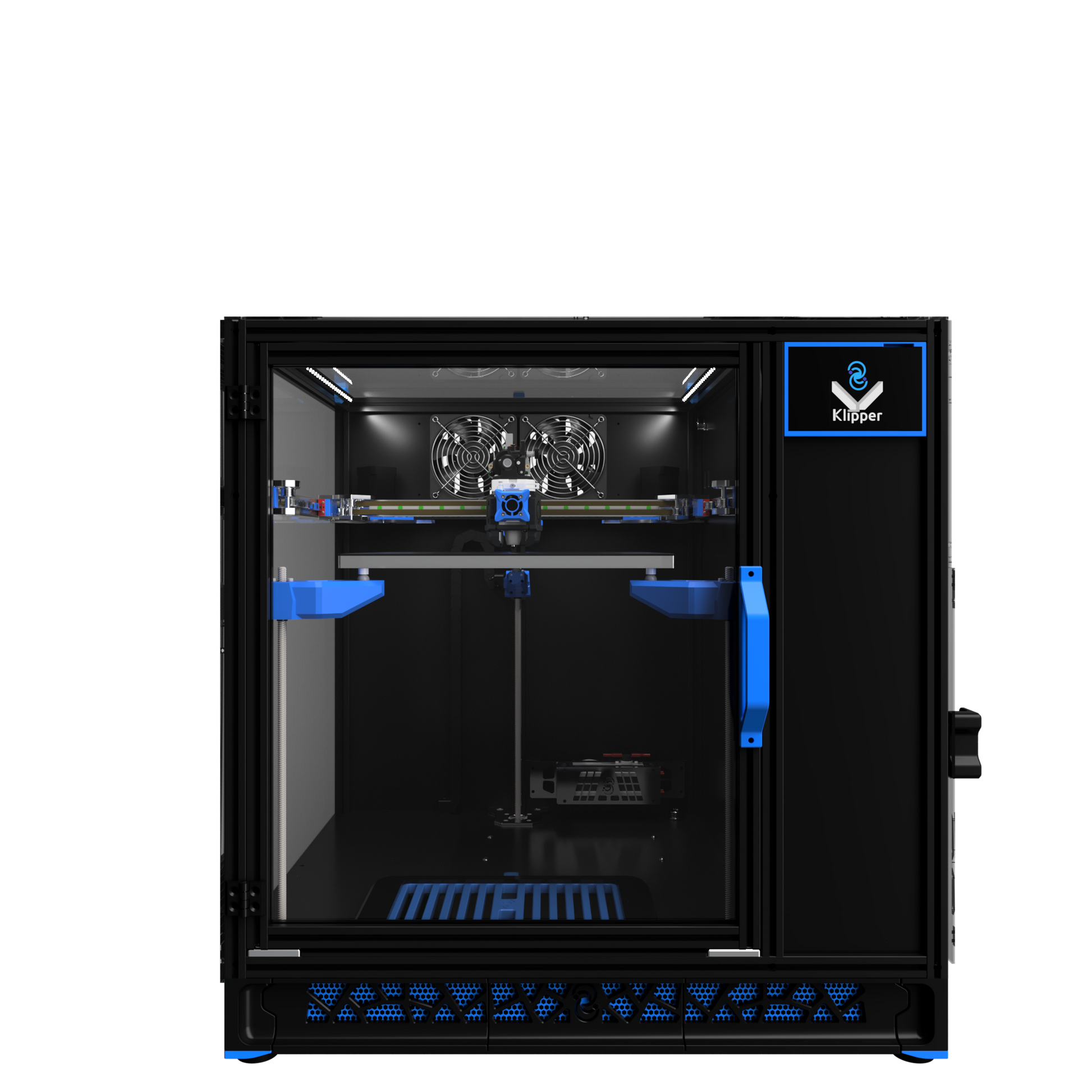

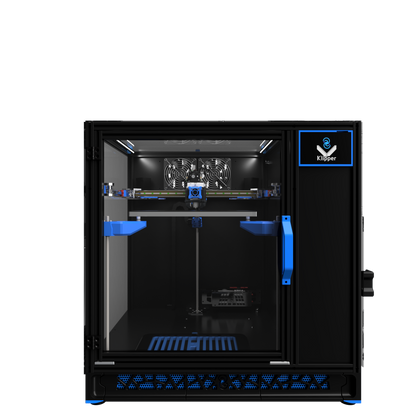

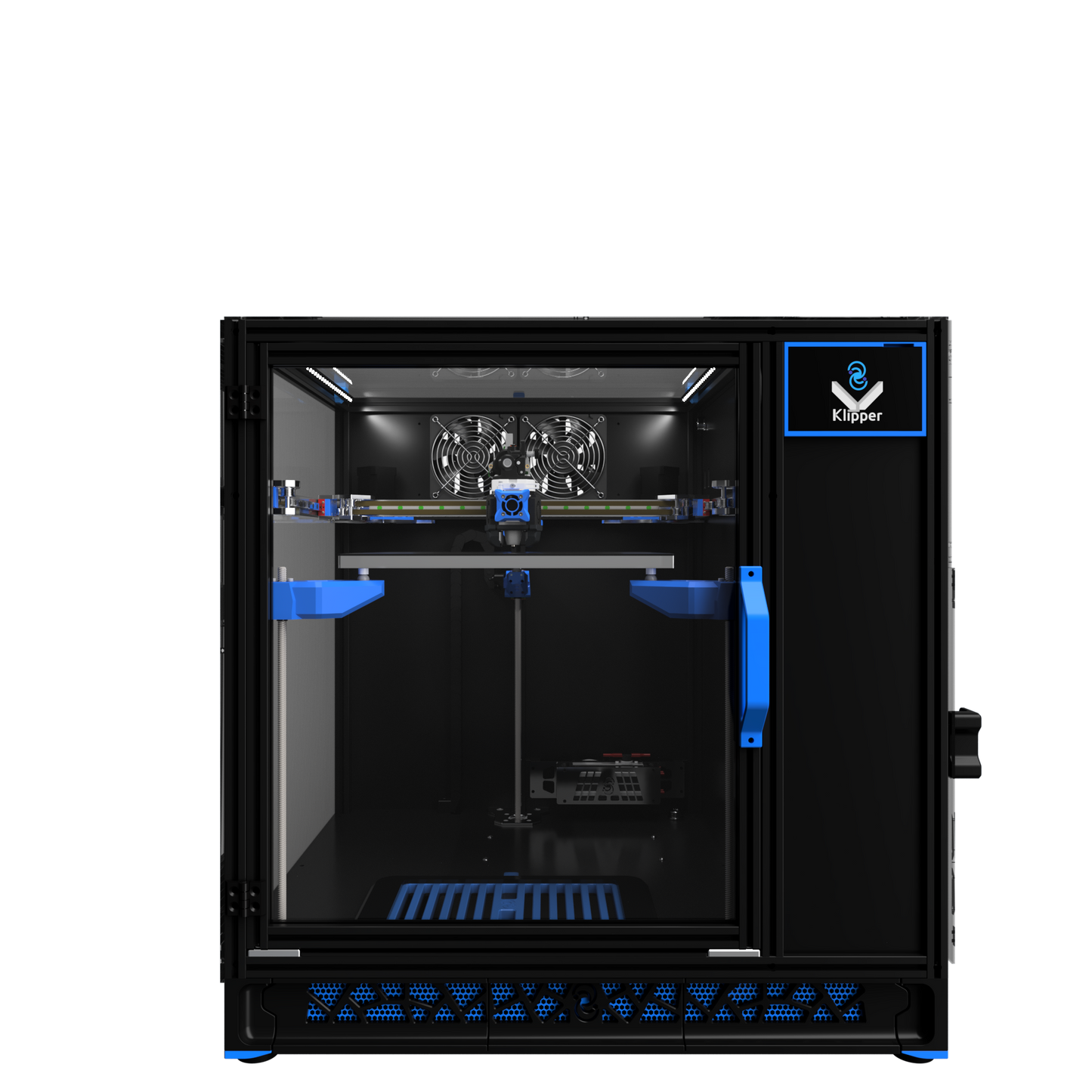

Hybrid Hyperdrive Galaxy One

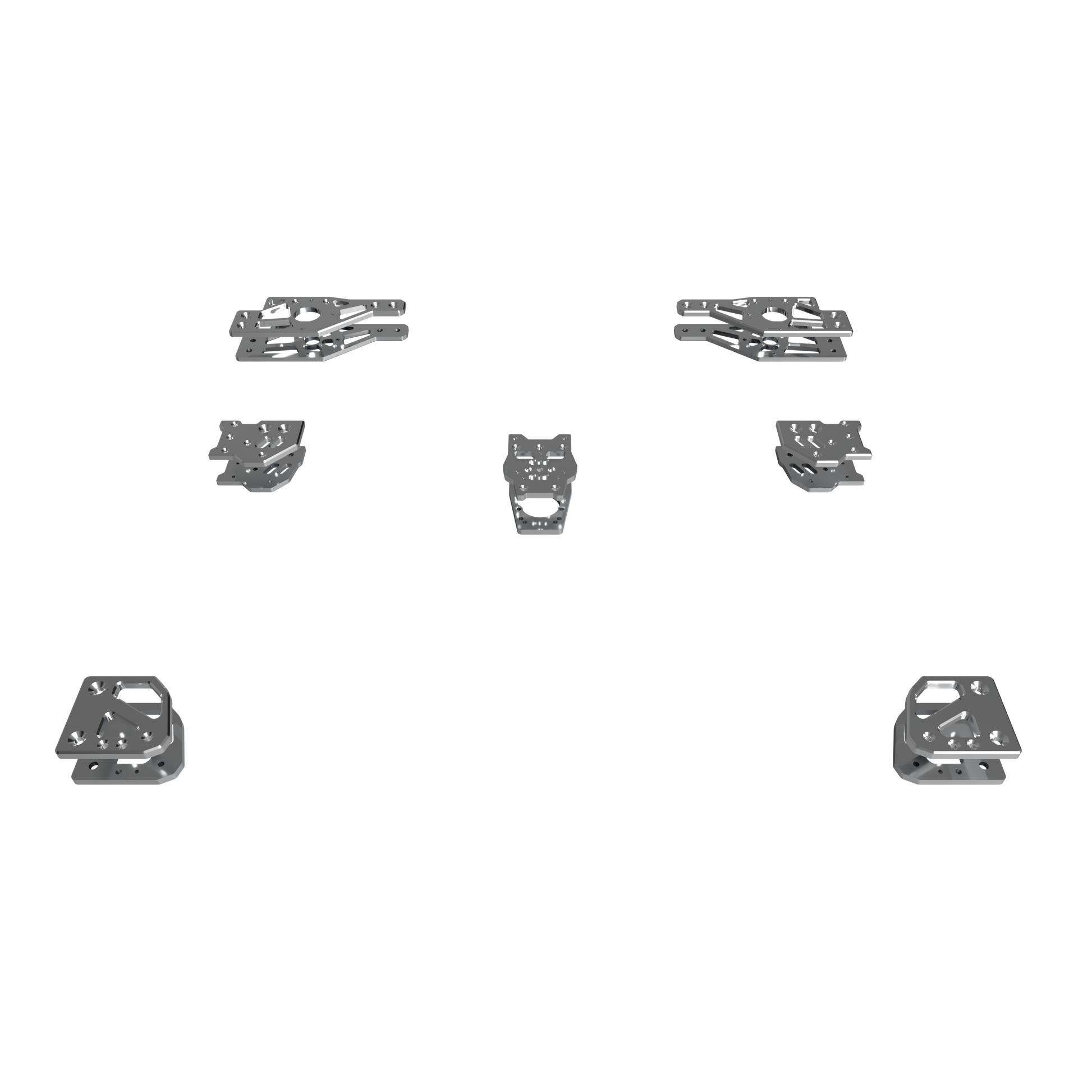

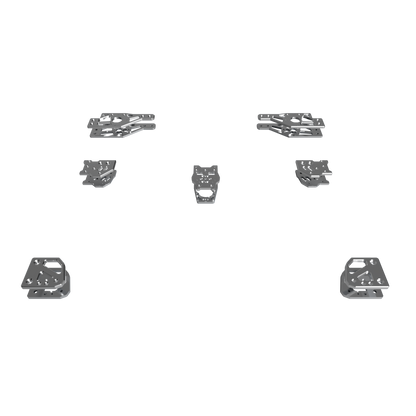

The Hybrid Hyperdrive Galaxy One is a 300x300x250 CoreXY 3D printer with a hybrid CNC metal and ABS motion system. Designed for speed and precision, it comes in 24V or 48V configurations and offers an option for high-temp printed parts instead of ABS to withstand higher chamber temperatures. It includes the Beacon leveling system for fast, contactless bed leveling, ensuring precise first-layer calibration. The printer is also available with either the Rapido HF, UHF hotend or the Chube Air for optimized performance.

For any of the printed parts, you will be added to the Beta_Test_Dev role in our Discord server, where you can find the STL files. If you have any questions, please feel free to ask.

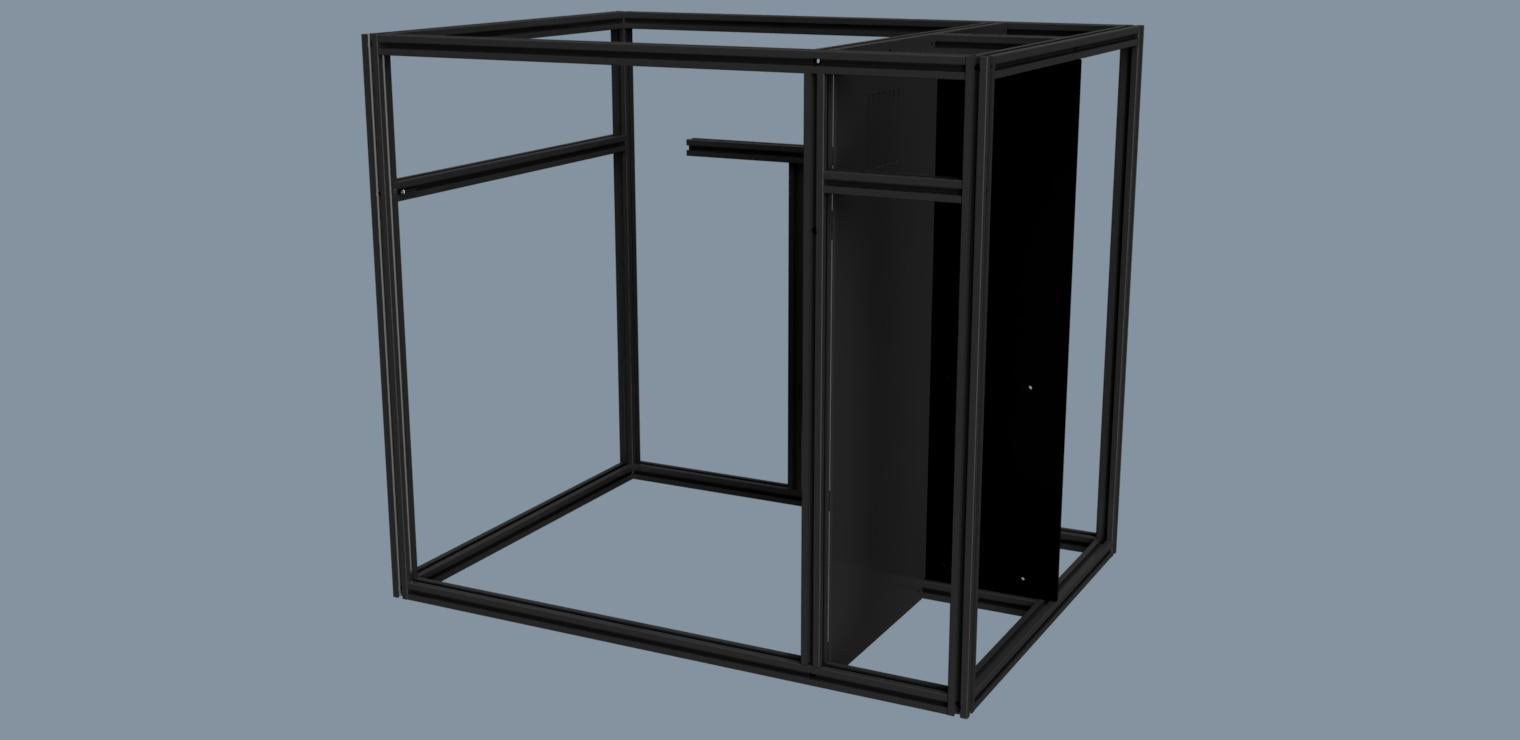

Phase two extrusion lengths and amount

• 290 mm × 1

• 330 mm × 1

• 410 mm × 1

• 429 mm × 2

• 450 mm × 9

• 470 mm × 1

• 552 mm × 2

• 560 mm × 2

• 600 mm × 4

• 620 mm × 4

Phase five Electronics Options

Galaxy One Hybrid Electronics Kit — Standard

The Standard kit supports the main features needed for a complete Galaxy One Hybrid build, including high-current XY motion, modular toolhead control, chamber exhaust support, front LED status lighting, chamber temperature monitoring, and probe-based bed compensation.

Recommended Standard Kit Hardware

• BTT Manta M8P V2.0 main control board
• 2x Mellow TMC5160 Pro V1.5 external drivers for XY
• 3x TMC2209 drivers for Z motion
• BTT EBB36 Gen2 toolhead PCB
• Cartographer V4 USB probe
• Chamber thermistor
• Chamber exhaust fan wiring support
• 18 LED front NeoPixel status strip support
• Hypernova-compatible extruder and hotend support

Supported Features

• 300mm Galaxy One Hybrid configuration
• CoreXY motion system
• High-current XY driver support
• Modular USB/CAN toolhead support
• Cartographer V4 probing support
• Chamber temperature monitoring
• PLA chamber exhaust control
• ABS/ASA chamber temperature wait logic
• print-progress LED bar
• LED status effects for homing, heating, Z tilt, mesh, printing, and errors
• Modular Klipper config structure for easy setup

The Standard kit is the best choice for most builders. It gives you the core electronics needed for a clean and capable Galaxy One Hybrid build while keeping the price practical.

Galaxy One Hybrid Electronics Kit — Pro

The Pro kit is ideal for builders who want premium probing, clean toolhead wiring, onboard high-power driver support, advanced chamber control options, and a fully loaded Hypernova-ready electronics setup.

Recommended Pro Kit Hardware

• Motor Dynamics Lab Leviathan V1.1 main control board
• Onboard TMC5160 XY driver support
• LDO Nitehawk-36 toolhead PCB
• Beacon USB probe
• PT1000 hotend thermistor support
• Chamber thermistor
• Chamber exhaust fan wiring support
• Optional chamber heater kit support
• Chamber heater circulation fan support
• 18 LED front NeoPixel status strip support
• Hypernova-compatible extruder and hotend support

Supported Features

• 300mm Galaxy One Hybrid configuration
• CoreXY motion system
• Premium high-current XY driver support
• Modular USB/CAN toolhead support
• Beacon probing support
• Chamber temperature monitoring
• Optional active chamber heater support
• Chamber heater circulation fan support
• PLA chamber exhaust control
• ABS/ASA chamber temperature wait logic
• Cyan print-progress LED bar
• Red blinking LED error/cancel status
• LED status effects for homing, heating, Z tilt, mesh, printing, and errors
• Modular Klipper config structure for easy setup

The Pro kit is the no-compromise option for builders who want the best supported electronics package for the Galaxy One Hybrid. It is built for clean integration, premium probing, and advanced chamber control.
