ARRMA AR390068 Mega 12T Brushed Electronic Speed Control Red

ARRMA AR390068 Mega 12T Brushed Electronic Speed Control Red

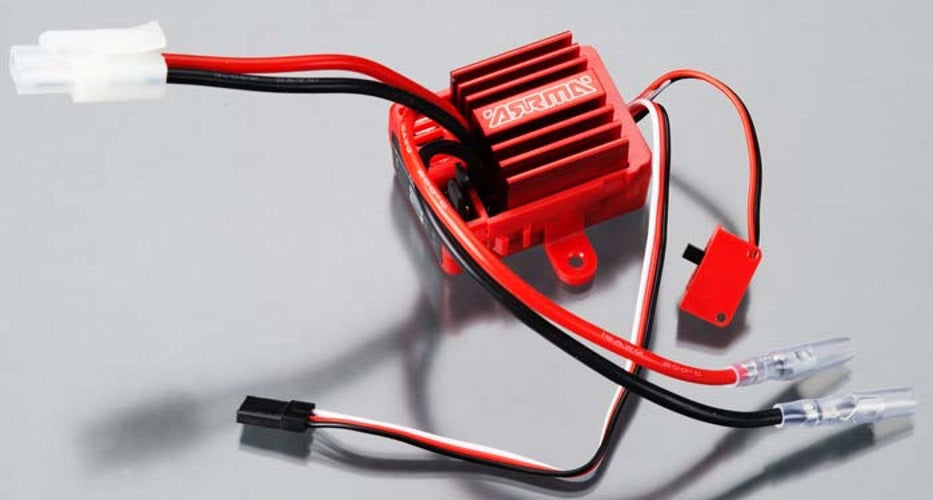

This is the Arrma Mega Electronic Speed Control for Brushed Motors 12 Turns and Above.

FEATURES
Compatible with 550 size motors down to 12 turns and powered by a 2S
LiPo or a 6-cell NiMH battery, or an 18 turn & above 550 size motor
with 3S LiPo or 9-cell NiMH battery power
Aluminum heat sink, red in color
Handles up to 40A

INCLUDES
Arrma Mega 12T ESC with Tamiya Battery Connector, Bullet Motor
Connectors, Receiver Connector, On/Off Switch and Instructions

SPECIFICATIONS
Battery Type: NiMH and LiPo ready
Input Voltage: NiMH 5-9 cell (6-10.8V)
LiPo 2-3 cell (7.4-11.1V)
BEC: 5V/2A
LiPo Cutoff: 3.2V per cell
Dimensions: 1.8 x 1.3 x 1.1" (46.5 x 34 x 28.5mm)
Weight: 2.3oz (65g)
Battery and Motor Wire Size: 16 gauge
Programmable: Yes
Battery Connector: Tamiya
