ARRMA AR390133 ADS-5 V2 4.5kg Waterproof Steering Servo Red

ARRMA AR390133 ADS-5 V2 4.5kg Waterproof Servo Red

This is the Arrma ADS-5 Waterproof V2 Steering Servo.

FEATURES

Dustproof and waterproof in normal usage when mounted to a vehicle
Ideal for use as a steering or throttle servo in 1/10 scale vehicles
used for backyard bashing
Dual ball bearings
Heavy duty composite plastic gears

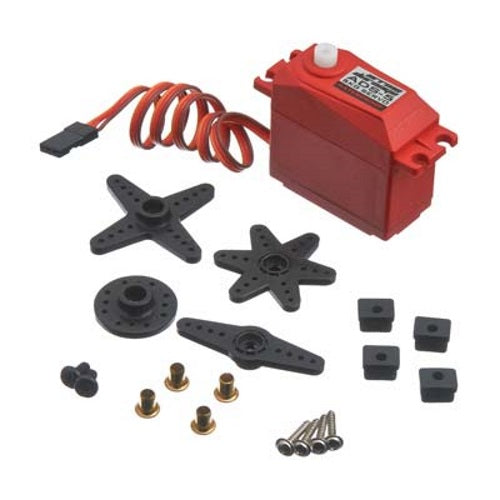

INCLUDES:

Arrma ADS-5M Servo with Futaba style Connector, 1.2" (32mm) diameter
6-Point Horn, 1.5" (39mm) diameter 4-Point Horn, 1.5" (39mm)
Double Arm Horn, 0.83" (21mm) Round Horn, four each Screws,
Grommets and Eyelets

SPECIFICATIONS

Torque: 70 oz/in (5 kg/cm) @ 6V
4.8V 6V
Speed: 0.14 sec 0.12 sec
Dimensions: 1.6 x 1.5 x 0.79" (40 x 38 x 20mm)
Wire Length: 11.8" (300mm)
Signal: Analog
Spline: 25 tooth
