FireX Max Sintering Kiln

The most powerful sintering kiln in the TVF lineup—built for high-volume, high-temperature metal and ceramic 3D printing at production scale. The FireX Max delivers the capacity and precision needed for aerospace, defense, industrial, and advanced research programs.

Electrical:
240v, 26.7A, 6400w, Single Phase
OR 208v, 26.7A, 5550w, Single Phase

Max Temperature:
1288°C / 2350°F

Controller:
KilnMaster Touchscreen

Plug:
6-50P

Certifications:
UL Listed

Sintering Area:
16.5" Diameter x 18" Depth (419mm x 457mm)

Outer Dimensions:
22.5" Diameter x 32" Height (572mm x 813mm)

Shipping Weight:
~145 lbs

Compatible Materials:

• Bronze

• Copper

• H13 Tool Steel

• Inconel® 718

• M300 Tool Steel

• SS17-4

• SS316L

• Pyrex® (Borosilicate)

• Amaco 46-D

Availability:
Available in the USA only.

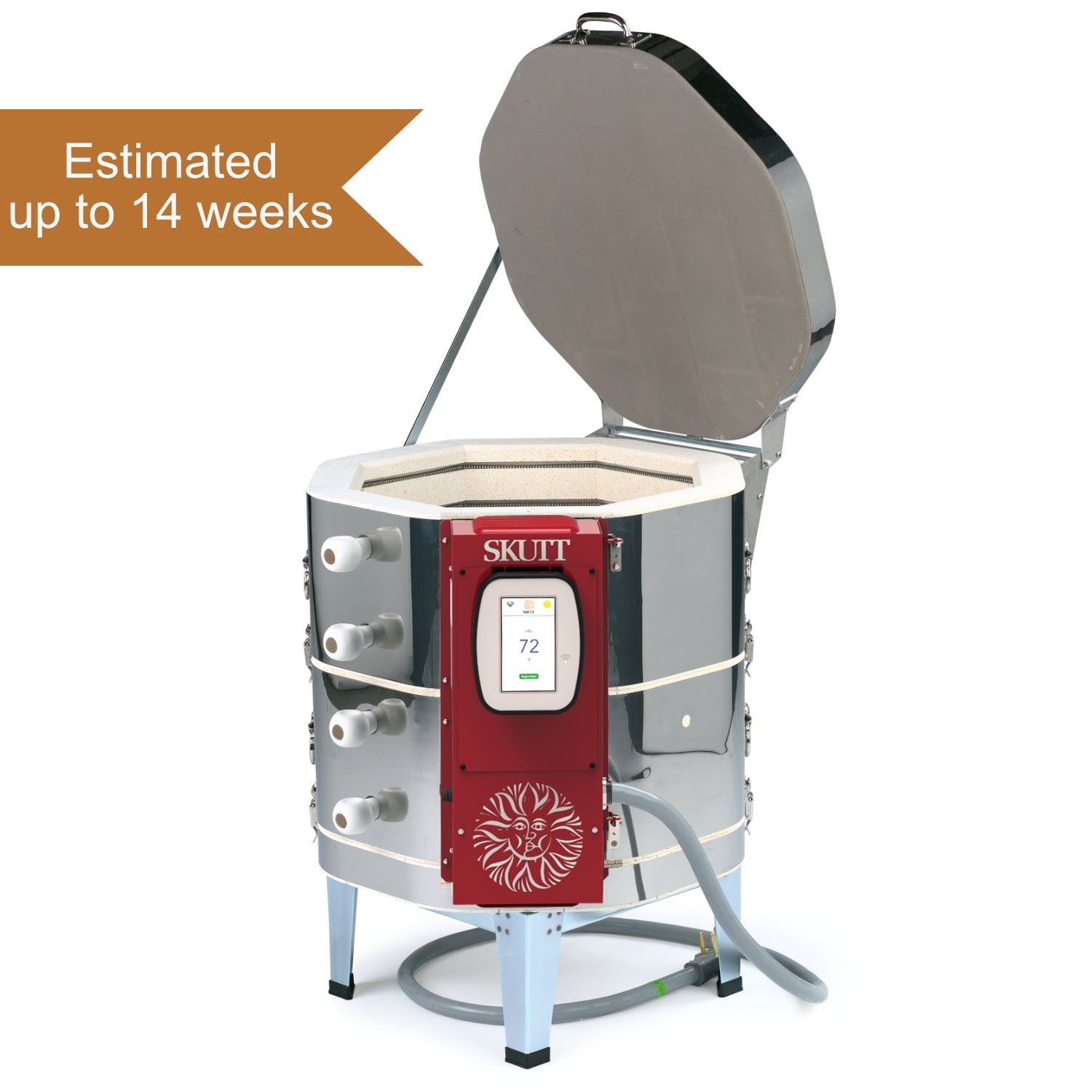

Estimated Lead Time:
Up to 14 weeks. Contact us for more accurate lead times on large or time-sensitive orders.

Shipping:
Prices do not include shipping. Contact us for a shipping quote.

👉 Debind and Sinter instructions – Click Here

Applications:

• Production-scale sintering for aerospace structural and flight hardware components

• Defense and military hardware programs requiring high-volume, high-strength metal parts

• Industrial manufacturing and contract sintering operations

• University and national lab research programs with large batch requirements

• Refractory ceramic and specialty glass sintering

• High-temperature alloy prototyping: Inconel® 718, H13, M300

• Multi-material production runs across steel, copper, and ceramic Filamet™

Additional Links:

👉 SDS and TDS – Click Here
👉 Research Papers – Click Here

Running a production sintering program, defense contract, or large-scale R&D initiative?
We supply aerospace primes, defense contractors, national labs, and industrial manufacturers with sintering equipment and Filamet™ materials for high-volume metal 3D printing. Email info@thevirtualfoundry.com for volume pricing, lead times, and program inquiries. We respond within 1 business day.

FAQ:

❓ What materials can the FireX Max sinter?
✅ The FireX Max is compatible with Bronze, Copper, H13 Tool Steel, Inconel® 718, M300 Tool Steel, SS17-4, SS316L, Pyrex® (Borosilicate), and Amaco 46-D. It reaches 1288°C / 2350°F, covering the full range of TVF Filamet™ materials.

❓ What atmosphere does the FireX Max require?
✅ Metal Filamet™ materials require sintering in an inert or reducing atmosphere (typically nitrogen or forming gas). Consult our debind and sinter instructions for full atmosphere and profile specifications for each material.

❓ How does the FireX Max compare to the FireX and TVF Sintering Kiln?
✅ The FireX Max is the largest and most powerful unit in the TVF lineup, with a 16.5" x 18" sintering chamber (419mm x 457mm) — significantly more capacity than the FireX or TVF Sintering Kiln. It is designed for production volume, large batch runs, and programs requiring maximum material throughput. The FireX and TVF Sintering Kiln are better suited for R&D, small batch, and entry-level production.

❓ Is the FireX Max available outside the USA?
✅ At this time, the FireX Max is only available for purchase and shipping within the USA. International customers should contact info@thevirtualfoundry.com to discuss options.
