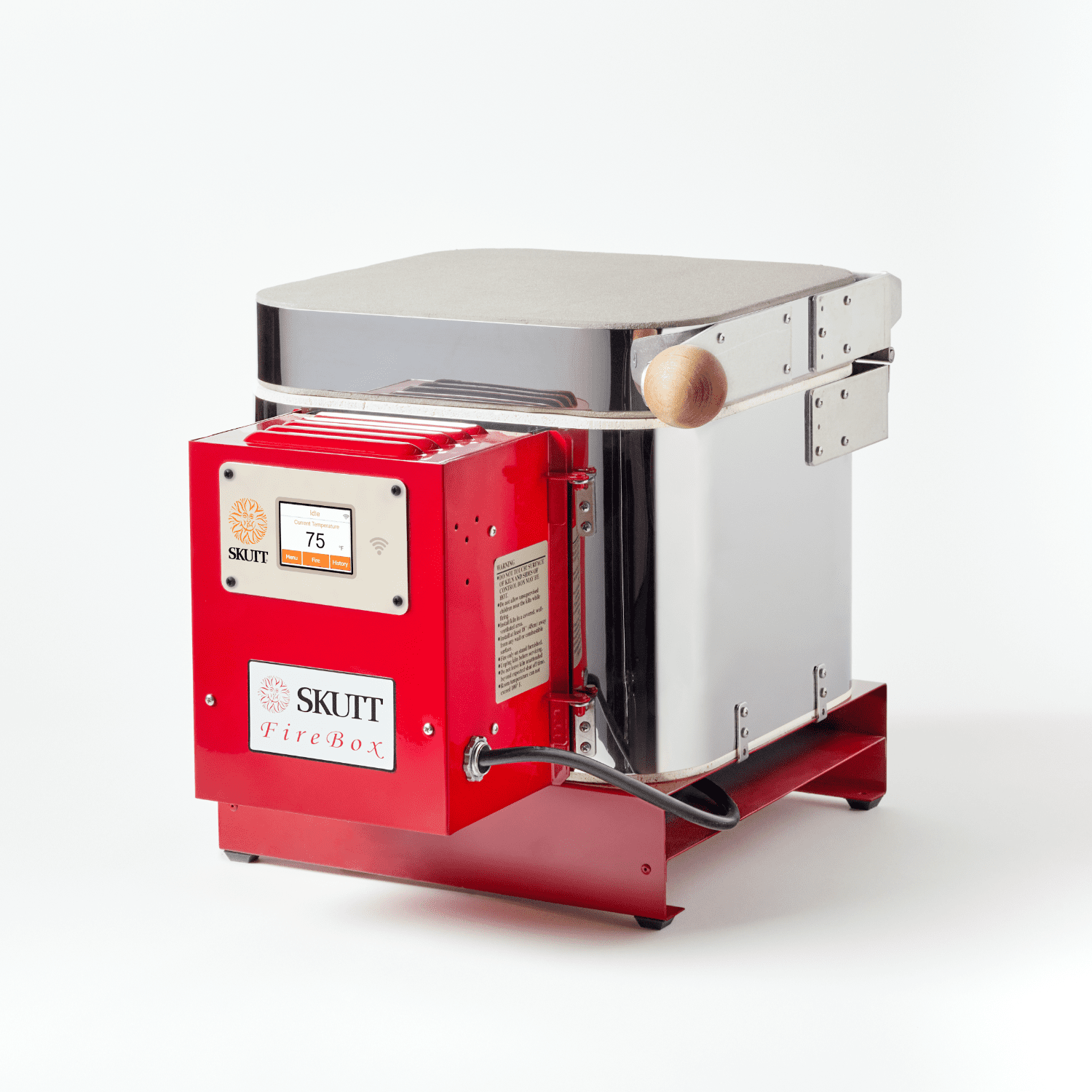

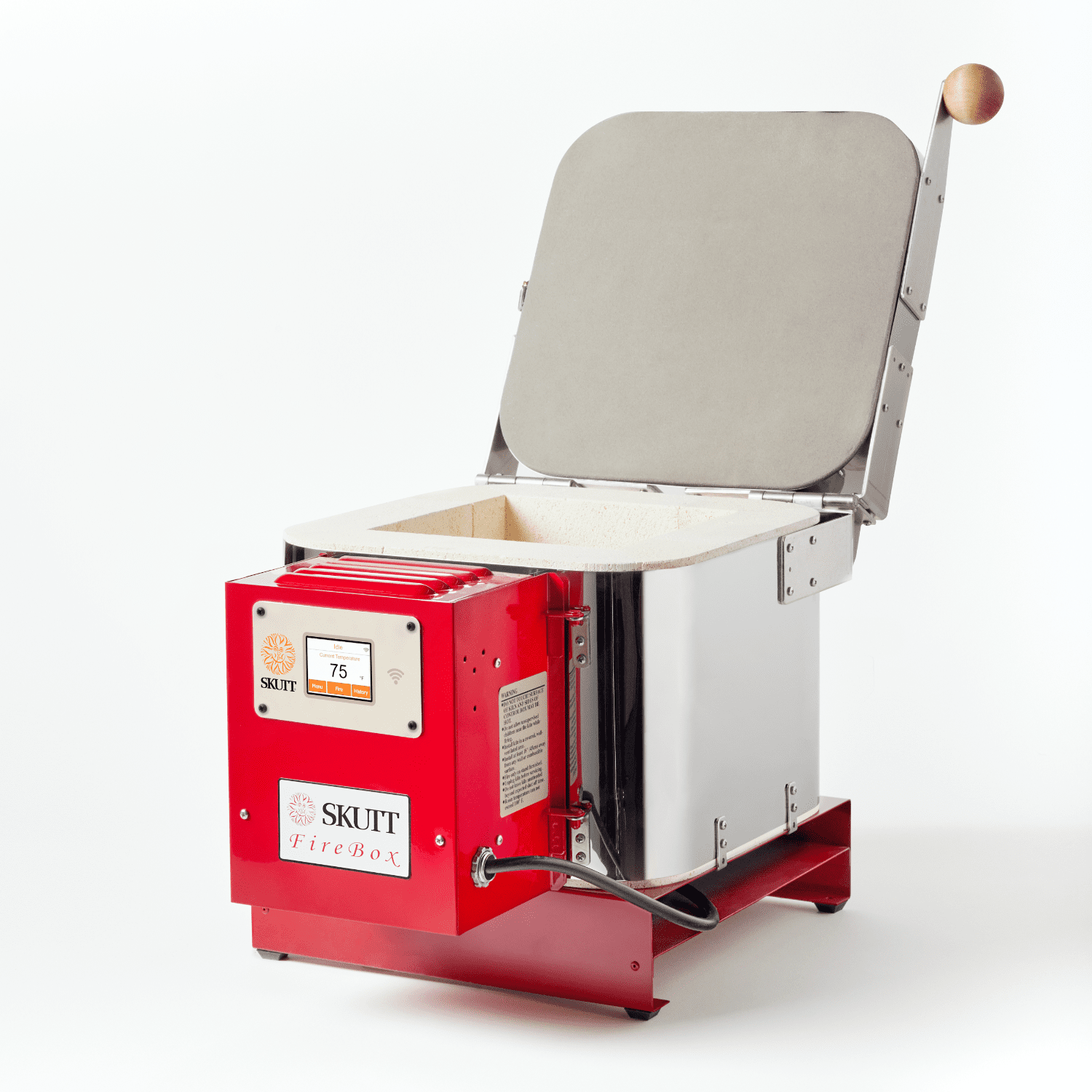

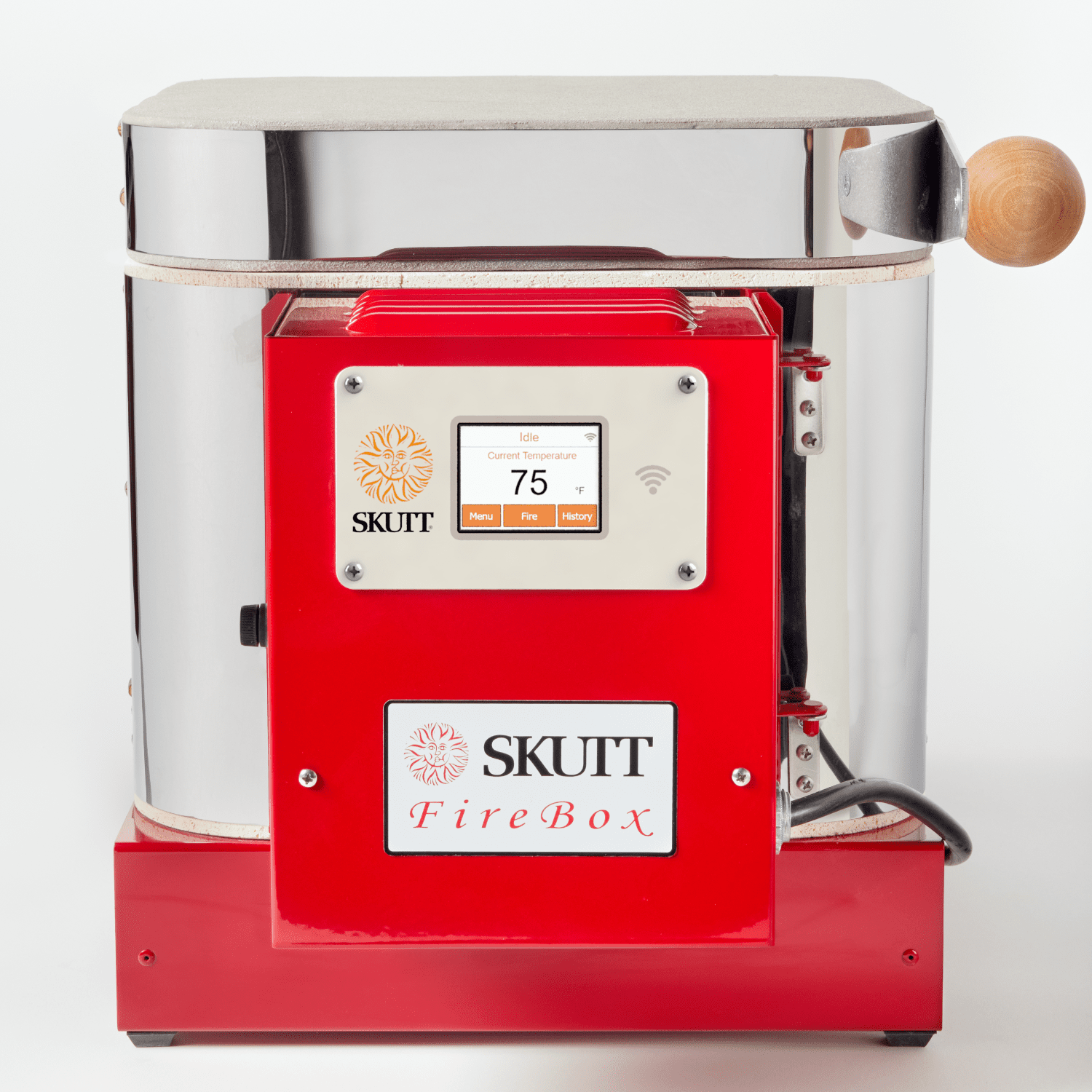

FireX Sintering Kiln

The FireX Sintering Kiln brings professional metal sintering to any lab, studio, or workshop—compact enough to ship via UPS, powerful enough to sinter the full Filamet™ material lineup. Go from 3D printed part to 100% metal with the click of a button, up to 1260°C/2300°F.

How It Works:
3D Print → Pack → Sinter → Metal!
Pack your printed part in Sintering Refractory Ballast, cover with Sintering Carbon, load into the kiln, select your sintering profile, click start—and your parts become functional metal objects.

Proper ventilation is required while operating the kiln. Kilns operate at very high temperatures—use with extreme caution.

Specs:
115v, 15A, 1800w, 50/60Hz, Single Phase
Max Temperature: 1260°C / 2300°F
Controller: Mini Touchscreen
Plug: 5-15P
UL Listed

Compatible Materials:
Bronze, Copper, H13 Tool Steel, Inconel 718, M300 Tool Steel, Stainless Steel 17-4, Stainless Steel 316L, Pyrex® (Borosilicate), Amaco 46-D

Sintering Area / Chamber Volume:
8” Width x 8” Depth x 6” Height
203mm Width x 203mm Depth x 152mm Height

Kiln Outer Dimensions:
15” Width x 20.5” Depth x 14.5” Height
381mm Width x 521mm Depth x 368mm Height

Shipping Weight: ~58 lbs

Ships via UPS. Only available in the USA.

Estimated Lead Time: 4–6 weeks

Building a metal 3D printing lab or production workflow?
We supply universities, R&D labs, defense contractors, and industrial manufacturers with sintering equipment and Filamet™ consumables for end-to-end metal printing programs. Email info@thevirtualfoundry.com for volume pricing and program inquiries. We respond within 1 business day.

FAQ:

❓ What materials can the FireX sinter?
✅ The FireX is compatible with Bronze, Copper, H13 Tool Steel, Inconel 718, M300 Tool Steel, SS17-4, SS316L, Pyrex® (Borosilicate), and Amaco 46-D. See full sintering profiles here: Click Here

❓ Does it ship outside the USA?
✅ No—the FireX is only available in the USA. For international sintering equipment inquiries, contact info@thevirtualfoundry.com.

❓ What atmosphere does the kiln use?
✅ The kiln is designed for use with a reducing or inert gas atmosphere (e.g. hydrogen/nitrogen or forming gas) supplied by the user. Proper ventilation is required during operation.

❓ How does it compare to the TVF Sintering Kiln and FireX Max?
✅ The FireX ships via UPS (no freight required), is UL Listed, and is the most accessible entry point for sintering Filamet™ materials. The TVF Sintering Kiln adds TAP touchscreen remote monitoring. The FireX Max is a larger-chamber, higher-wattage unit for production-scale sintering. All three are compatible with the same material lineup.
