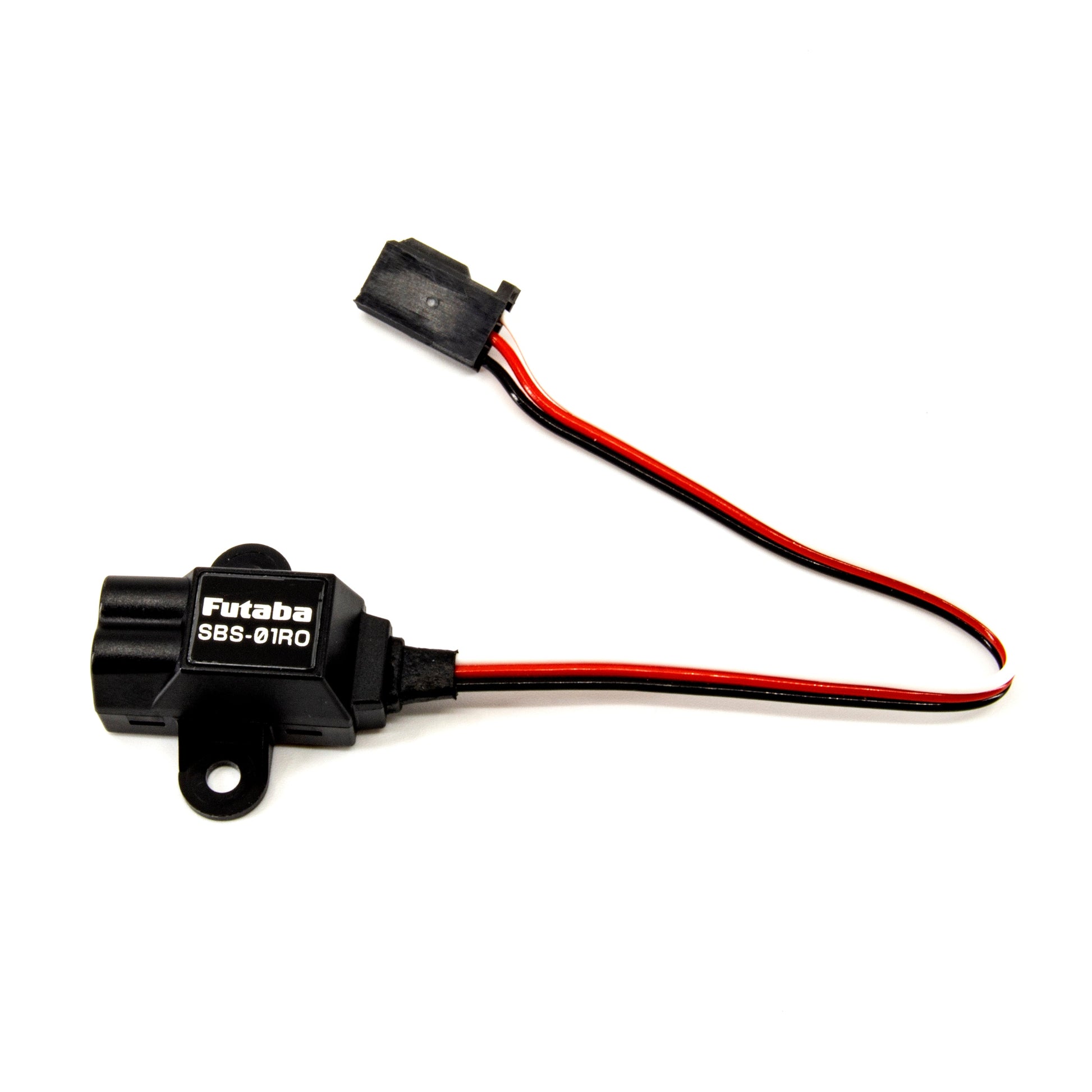

Futaba SBS-01RO Optical RPM Telemetry Sensor

SBS-01RO Optical RPM Telemetry Sensor

Use:
Indicates the number of rotations of the item (propeller, rotor, etc.) to which it is attached.

Range:
360 ~ 300,000 RPM/blades

Length:
160 mm
6.3 in

Weight:
4.9 g
0.173 oz

Voltage:
DC 3.7 ~ 7.4V

The SBS-01RO is not optimal for helicopter use due to the large distance between the rotor and sensor, as a result, the reading can be unstable. It is recommended the SBS-01RM Magnetic Sensor be utilized for Helicopters.
