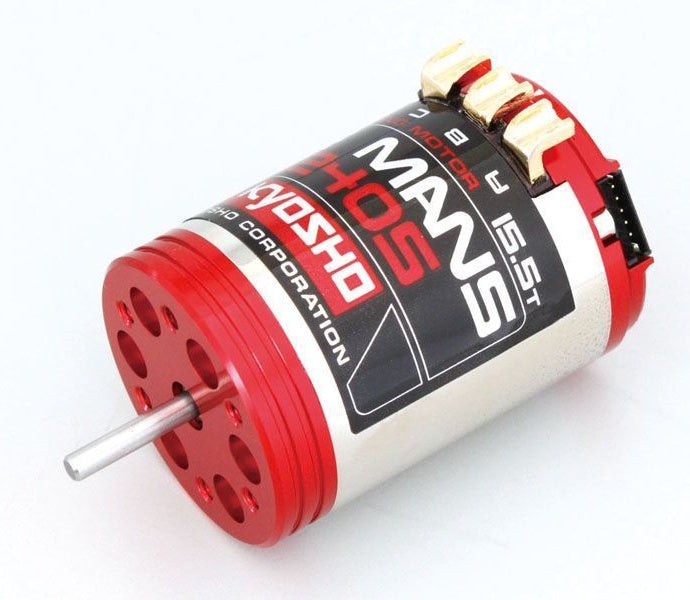

Kyosho 37032B Le Mans 240S 15.5T 2550KV Brushless Motor (4WD)

Kyosho Le Mans 240S 15.5T 2550KV Brushless Motor 4WD RC Car KYO37032B

Product Description:

Upgrade your 1/10-scale 4WD RC vehicle with the Kyosho Le Mans 240S 15.5T Brushless Motor. Inspired by Kyosho’s legendary Le Mans racing motors from the 1980s, the modern 240S combines classic styling with performance designed for competitive sprint racing.

The 15.5-turn configuration is optimized for 4WD applications and produces approximately 2550KV. Its enclosed, dust-resistant motor can is designed without cooling openings, helping protect the internal components from dirt and debris in rear-motor vintage-style vehicles.

The motor features a brilliant nickel-plated finish with CNC-machined front and rear end bells finished in vivid red anodizing. Adjustable motor timing allows the power delivery to be fine-tuned for different vehicles, tracks, and driving conditions.

Gold-plated A, B, and C terminals help minimize electrical resistance, while their U-shaped design makes soldering the motor wires easier.

Features:

• Kyosho Le Mans 240S racing brushless motor
• 15.5-turn motor optimized for 4WD RC vehicles
• 2550KV rating
• Designed for four-minute sprint racing
• Compatible with 1S, 2S, and 3S battery systems
• Enclosed dust-resistant motor can
• Nickel-plated motor housing with mirror finish
• CNC-machined front and rear end bells
• Red anodized aluminum finish
• Adjustable motor timing
• Easy-to-read timing adjustment scale
• Gold-plated A, B, and C motor terminals
• U-shaped terminals simplify wire soldering
• Classic styling inspired by Kyosho’s 1980s racing motors
• Ideal for vintage and modern 1/10-scale 4WD RC cars

Specifications:

• Motor Turns: 15.5T
• Motor KV: 2550KV
• Operating Voltage: 1–3S / Maximum 12.6V
• RPM at 7.4V: 18,870 RPM
• Maximum Current: 38A
• Maximum Power: 320W
• Efficiency: 90%
• Motor Diameter: 35.8mm
• Motor Length: 51.2mm
• Shaft Length: 15mm
• Shaft Diameter: 3.175mm
• Weight: 179g

Package Includes:

• Kyosho Le Mans 240S 15.5T brushless motor
• Rotor maintenance tool
• Instruction manual

Required for Installation:

• Compatible RC vehicle
• Compatible brushless electronic speed controller
• Motor wires and soldering equipment, when required
• Compatible battery and charger

Please confirm your vehicle, gearing, electronic speed controller, and battery compatibility before installation.
