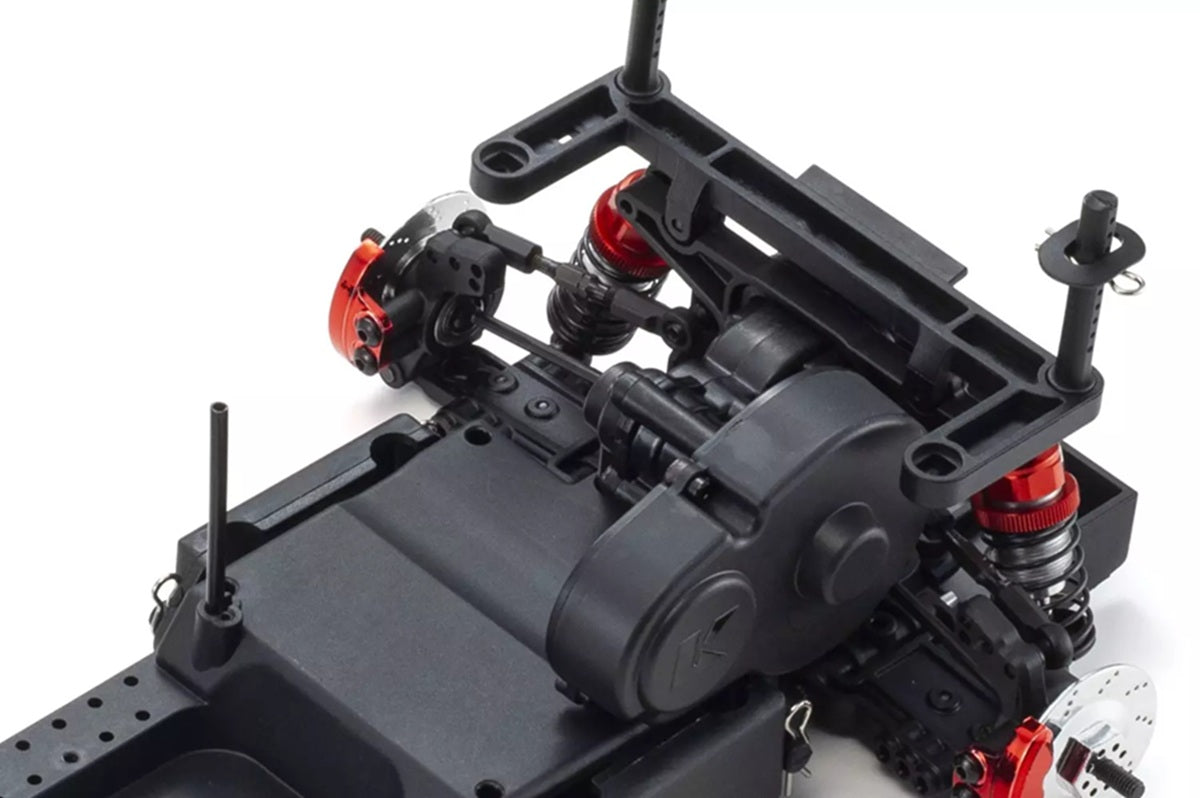

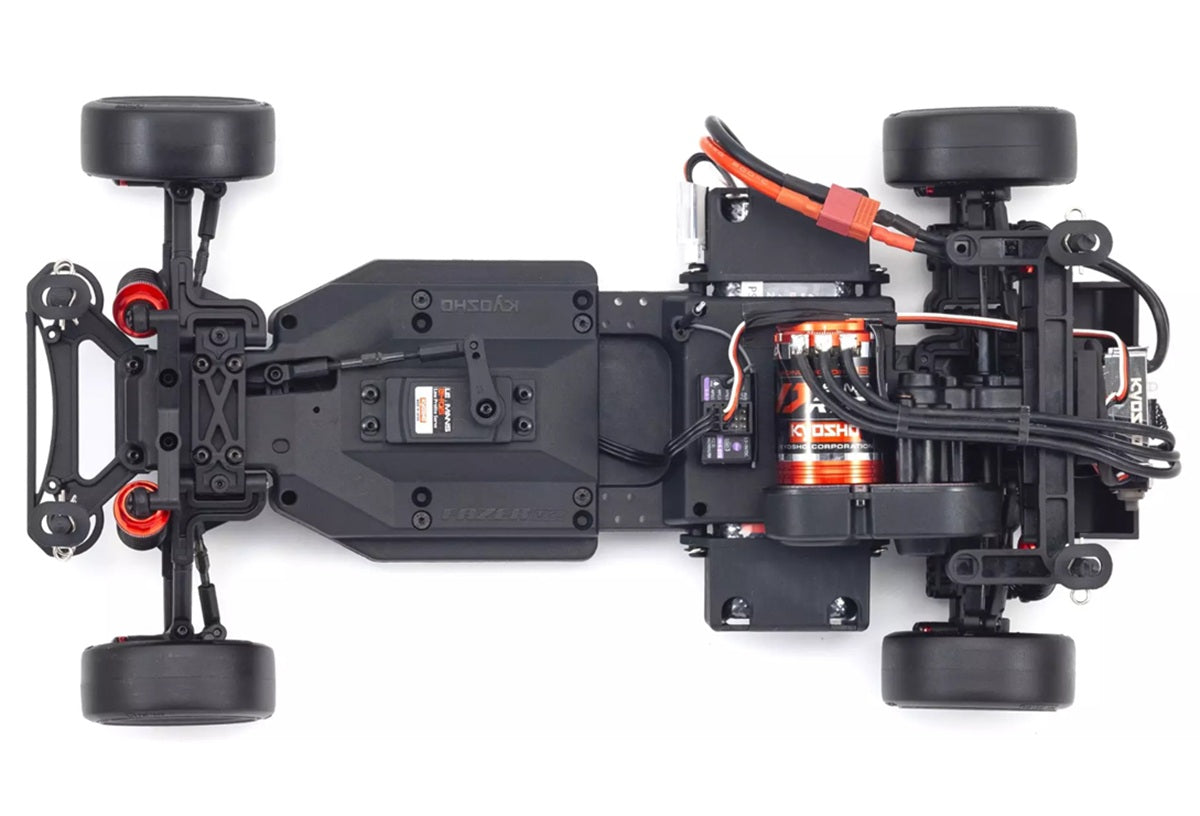

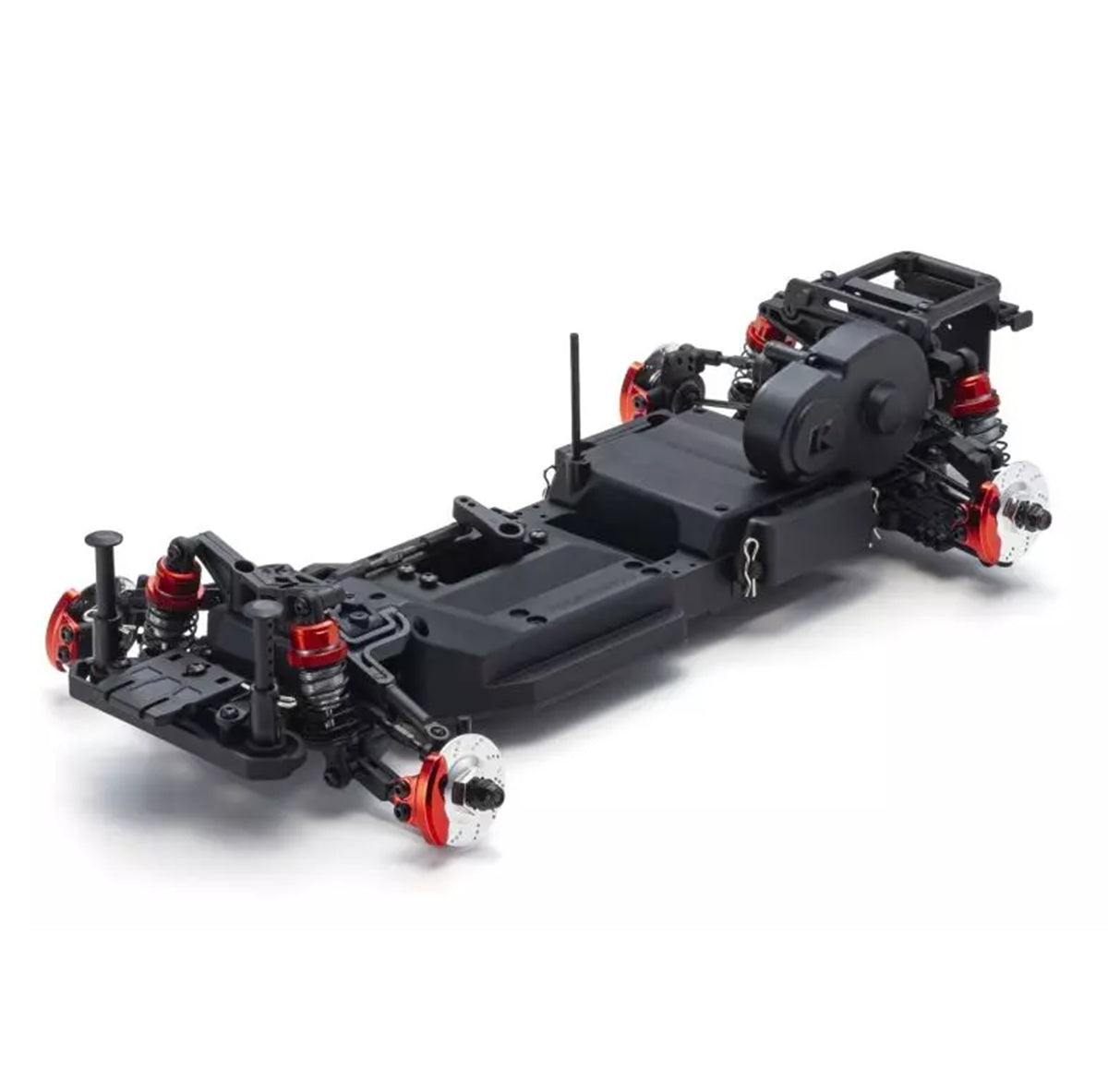

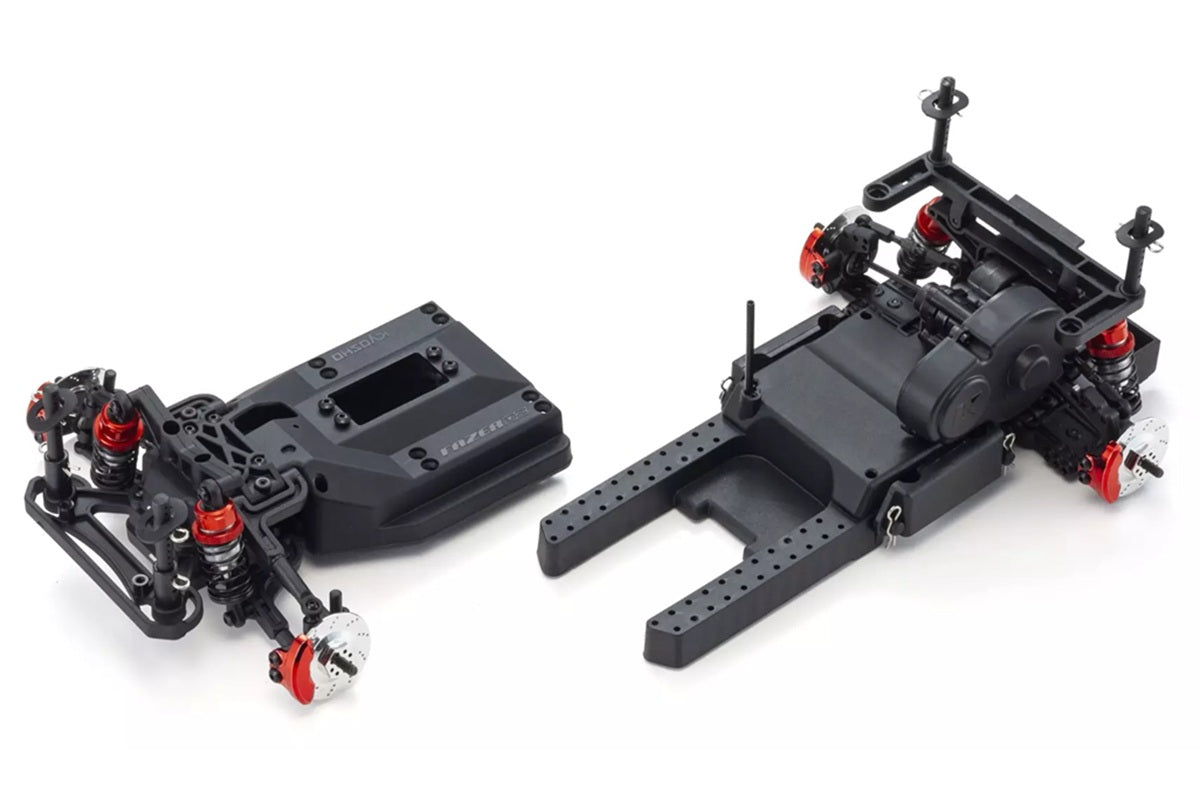

Kyosho FAZER D2 1/10 RWD Drift Chassis Kit 2WD 34551

Kyosho FAZER D2 1/10 RWD Drift Chassis Kit 2WD

Take your drifting setup to the next level with the Kyosho FAZER D2 1/10 RWD Drift Chassis Kit. Designed specifically for rear-wheel-drive drifting, the FAZER D2 combines a high-mounted motor layout, long-span suspension, extensive chassis adjustability, and a wide steering angle for precise counter-steering control.

Unlike the FAZER D2 Readyset, this version is supplied as an unassembled chassis kit without a body or electronics, giving drivers the freedom to select their preferred motor, ESC, servo, gyro, radio system, battery, wheels, tires, and body.

The chassis features an adjustable 240–274mm wheelbase, adjustable rear track width, and compatibility with a broad selection of 1/10 scale bodies. Aluminum oil shocks, universal swing shafts, a steel rear spool cup, aluminum steering crank pins, machine screws, and a full set of 22 ball bearings are included as standard equipment.

Features:

• Purpose-built 1/10 scale RWD drift chassis
• Rear-wheel-drive 2WD configuration
• Adjustable wheelbase for compatibility with a wide variety of bodies
• Adjustable rear track width
• High-mounted motor layout designed for RWD drifting
• Adjustable motor position for handling and traction tuning
• Large steering angle for counter-steering drift control
• Turnbuckle steering rods for toe adjustment
• Adjustable caster angle
• Rear double-wishbone suspension
• Adjustable rear camber
• Aluminum oil-filled shocks included
• Adjustable spring preload for ride-height tuning
• Optional shock pistons included for additional setup choices
• Steel rear spool cup
• Universal swing shafts
• Aluminum steering crank pins
• Full ball bearing specification with 22 bearings
• Multi-fit battery holder
• Compatible with standard drift wheels and tires
• Recommended wheel offset: 5mm
• Stealth-style front and rear body mounts
• Conventional body post mounts also included
• Machine screws used throughout for improved durability and precision
• Extensive Kyosho option-part compatibility

Specifications:

• Scale: 1/10
• Product Type: Drift Chassis Kit
• Drive: RWD / 2WD
• Chassis: FAZER D2
• Chassis Height: 12mm
• Wheelbase: 260mm standard
• Adjustable Wheelbase Range: 240–274mm
• Front Tread: 172mm
• Rear Tread: 170mm
• Gear Ratio: 9.1:1
• Motor: Sold Separately
• Tires: Sold Separately
• Body: Sold Separately
• Electronics: Sold Separately

Kit Includes:

• Unassembled FAZER D2 chassis kit
• 1.5mm / 2.0mm hex wrenches
• Cross wrench
• 3 / 4 / 5 / 5.5 / 7 / 8mm spanners
• Two types of body mount parts
• Setup adjustment parts
• Spare screws

Required to Complete:

• 1/10 scale body
• Drift tires
• Wheels
• 2–3 channel transmitter and receiver
• Drift servo
• Drift gyro
• ESC
• Motor
• Chassis battery
• Battery charger
• Assembly tools

Kyosho recommends bodies with approximately a 260–273mm wheelbase and wheels with approximately 5mm offset.

Specifics:

• Brand: Kyosho
• MPN: 34551
• Model: FAZER D2
• Scale: 1:10
• Type: Drift Car Chassis Kit
• Drive: RWD / 2WD
• Power Source: Electric
• Assembly Status: Unassembled Kit
• Motor: Not Included
• ESC: Not Included
• Servo: Not Included
• Radio System: Not Included
• Body: Not Included
• Tires: Not Included
• UPC / JAN: 4548565522705
