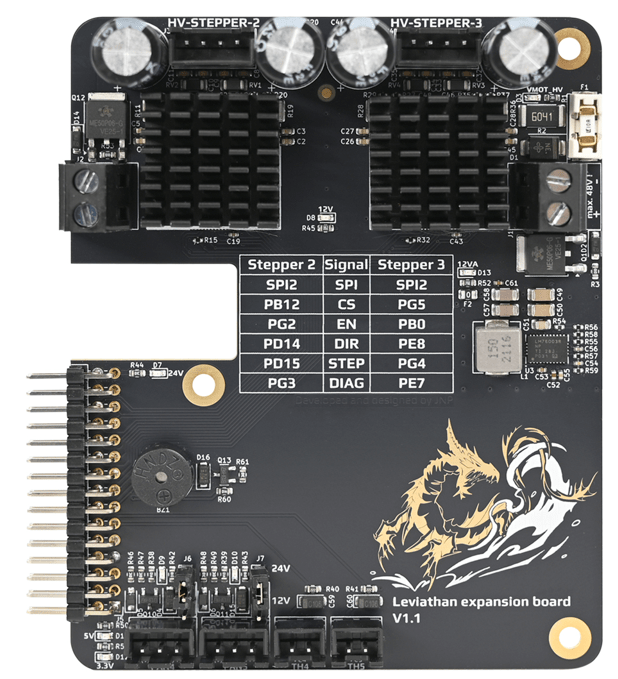

Leviathan MCU Expansion Board

This is an expansion board for the Leviathan MCU by JNP and LDO Motors

LEVIATHAN EXPANSION BOARD major features.

·       Adds two TMC5160 motor driver interfaces, allowing the Leviathan mainboard to connect up to nine motors.

·       Power supply for stepper motors with two voltage options: 24V and 48V.

·       Equipped with a buzzer with a center operating frequency of 27 kHz, which can be customized to produce different sounds by changing the frequency.

·       Adds two 3-pin fan interfaces and two temperature detection interfaces.

·       Equipped with reverse polarity protection.
