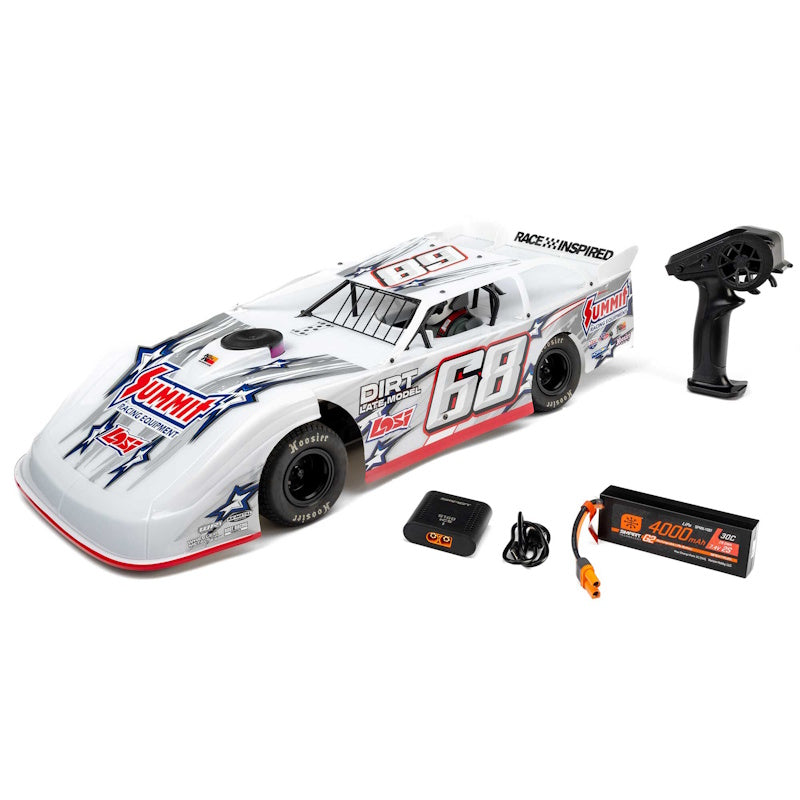

Losi 1/10 22S Dirt Late Model 2WD Brushless RTR Summit Racing LOS-2168T1

Losi 1/10 22S Dirt Late Model 2WD Brushless RTR – Summit Racing

Description:

Experience authentic dirt oval racing with the Losi 22S Dirt Late Model Summit Racing Edition. Based on competition-proven TLR 22 geometry, this 1/10-scale ready-to-run race car combines responsive 2WD handling, a low center of gravity, and a powerful Spektrum brushless system capable of speeds over 25 MPH.

This special edition features an officially licensed Summit Racing livery and comes complete with a Spektrum Smart 2S LiPo battery and Smart USB-C charger. The clipless body mounting system provides quick access to the chassis for battery changes, maintenance, and upgrades.

Features:

• Officially licensed Summit Racing livery
• Competition-proven TLR 22 race geometry
• Rear-wheel-drive 2WD drivetrain
• Spektrum Firma 3650 3300Kv brushless motor
• Spektrum Firma 45A Smart Lite brushless ESC
• Capable of speeds over 25 MPH
• Spektrum Smart 2S 4000mAh 30C LiPo battery included
• Spektrum S160 USB-C Smart charger included
• Spektrum SLT2 2.4GHz radio system
• Spektrum SR215 DSMR receiver with transponder port
• Spektrum S684 waterproof metal-gear steering servo
• Durable 2.5mm 6061-T6 aluminum chassis
• Threaded aluminum shock bodies
• Adjustable steel turnbuckles
• All-metal gear transmission
• Adjustable dual-slipper clutch
• Sealed gear differential filled with 3000cSt fluid
• Adjustable battery tray for full-length and shorty batteries
• Clipless body mounting system
• Officially licensed Hoosier soft-compound tires
• Scale-correct Wide 5 wheels
• Authentic late-model body with proper skew and twist
• Hand-painted driver figure, race seat, steering wheel, and detailed dash
• Compatible with many Losi and TLR option parts

Includes:

• Losi 1/10 22S Dirt Late Model 2WD RTR
• Summit Racing finished body
• Spektrum SLT2 2-channel 2.4GHz transmitter
• Spektrum SR215 DSMR 2-channel receiver
• Spektrum Firma 45A Brushless Smart Lite ESC
• Spektrum Firma 3650 3300Kv brushless motor
• Spektrum S684 25T waterproof metal-gear servo
• Spektrum Smart G2 7.4V 4000mAh 2S 30C LiPo battery with IC5
• Spektrum S160 USB-C 1x60W Smart charger
• Four AA transmitter batteries
• Custom number and letter decal sheets
• Metal four-way nut driver
• Composite shock tools
• Instruction manual

Required to Complete:

Nothing additional is required for operation.

An optional compatible 65W USB-C power supply can be purchased separately for faster charger performance.

Compatibility:

Accepts many existing Losi and TLR-Tuned option parts. The vehicle shares many suspension and transmission components with the Losi 22S Sprint platform.

Specifications:

• Brand: Losi
• Model: 22S Dirt Late Model Summit Racing Edition
• Vehicle Type: Dirt Oval
• Scale: 1/10
• Drivetrain: 2WD
• Power Type: Electric
• Motor Type: Brushless
• Motor: Spektrum Firma 3650 3300Kv
• ESC: Spektrum Firma 45A Smart Lite
• Battery: 7.4V 4000mAh 2S 30C Smart G2 LiPo
• Battery Connector: IC5
• Charger: Spektrum S160 USB-C Smart Charger
• Completion Level: Ready-to-Run
• Chassis: 2.5mm aluminum
• Pinion Gear: 20T
• Spur Gear: 84T
• Final Drive Ratio: 10.21:1
• Differential Fluid: 3000cSt
• Wheel Hex: 12mm
• Length: 24.25 in. / 616mm
• Width: 11.8 in. / 300mm
• Height: 6.4 in. / 163mm
• Weight Without Battery: 2494g
• Approximate Top Speed: 25+ MPH
• Color: White with Summit Racing livery
• Manufacturer Part Number: LOS-2168T1
• UPC: 660132999834

Part Number

LOS-2168T1
