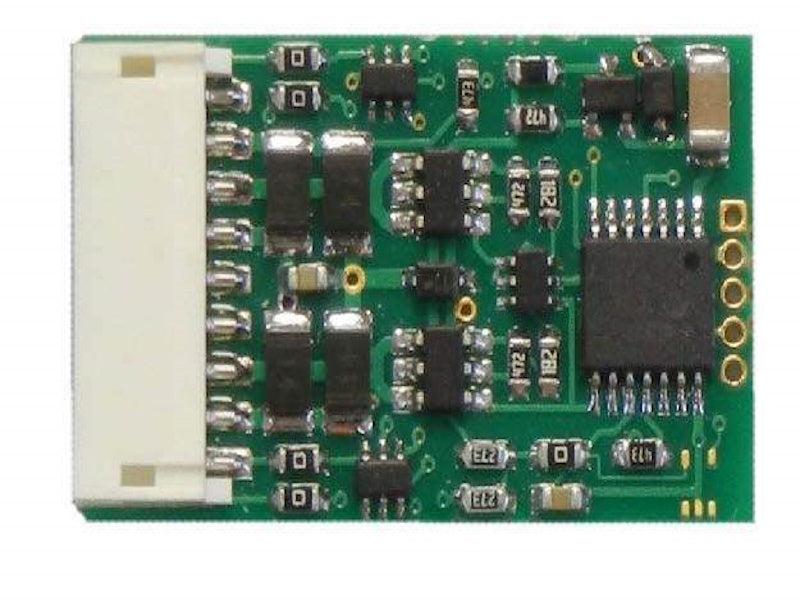

NCE 524-174 D13J Decoder Silent Running / NMRA 9 pin DCC “Quick Plug” 1.2A

NCE 5240174 D13J Decoder Silent Running / NMRA 9 pin DCC “Quick Plug” 1.2A

Dimensions: 1.03 x 0.630 x .185 inches – 26 x 16.5 x 4.7 mm
NCE: 5240174
D13J Decoder - new smaller replacement for D13SRJ Direct plug equipped with NMRA 9 pin DCC “Quick Plug” and a 9 pin 8" harness is also included.

Dimensions: 1.03 x 0.630 x .185 inches – 26 x 16.5 x 4.7 mm

Silent Running torque compensated motor drive
Motor rating 3/4 Amp continuous, 1.2 Amp stall

All four function outputs have lighting effects generators
Select from 15 different lighting effects
Full support for LED lighting
Decoder programming lock mechanism.
