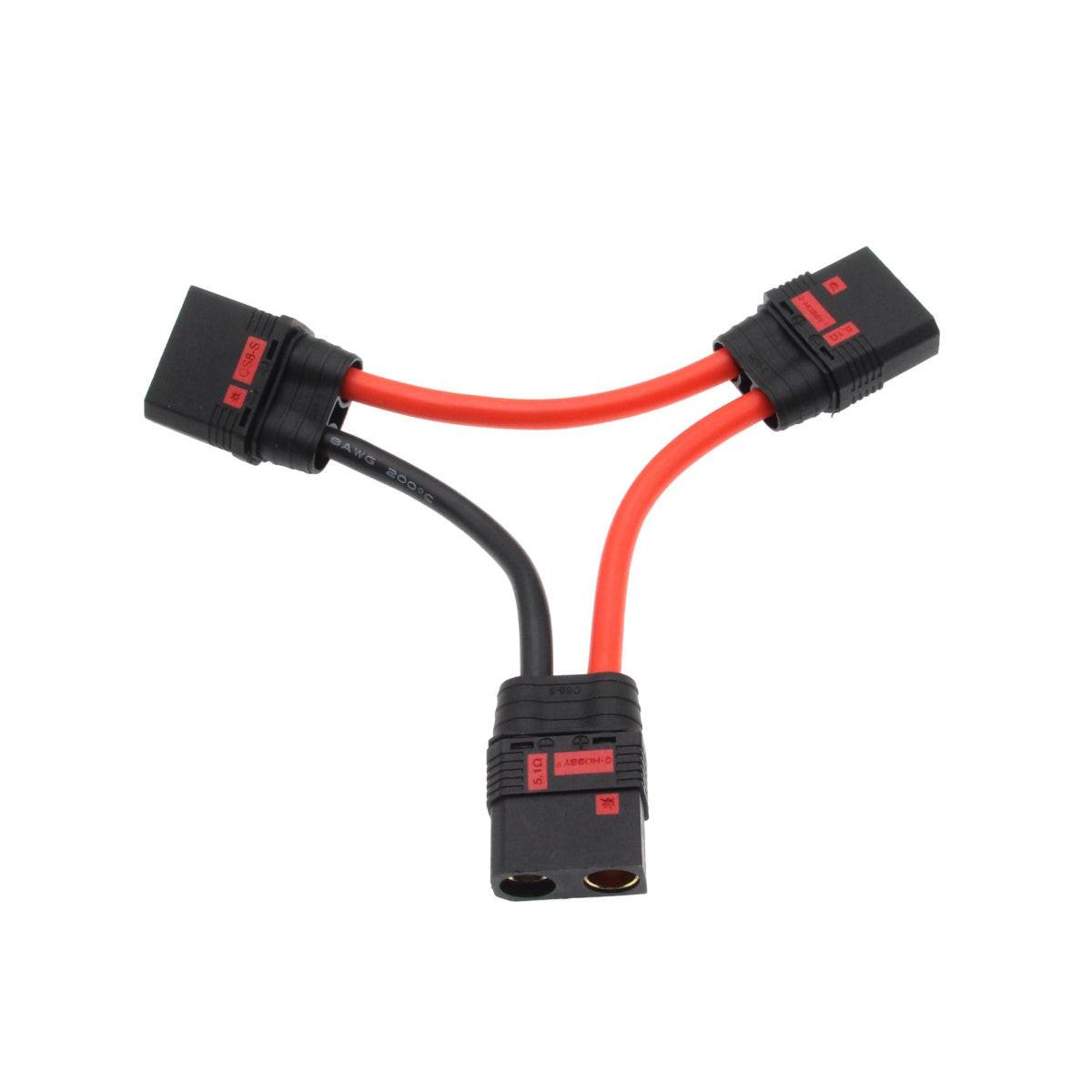

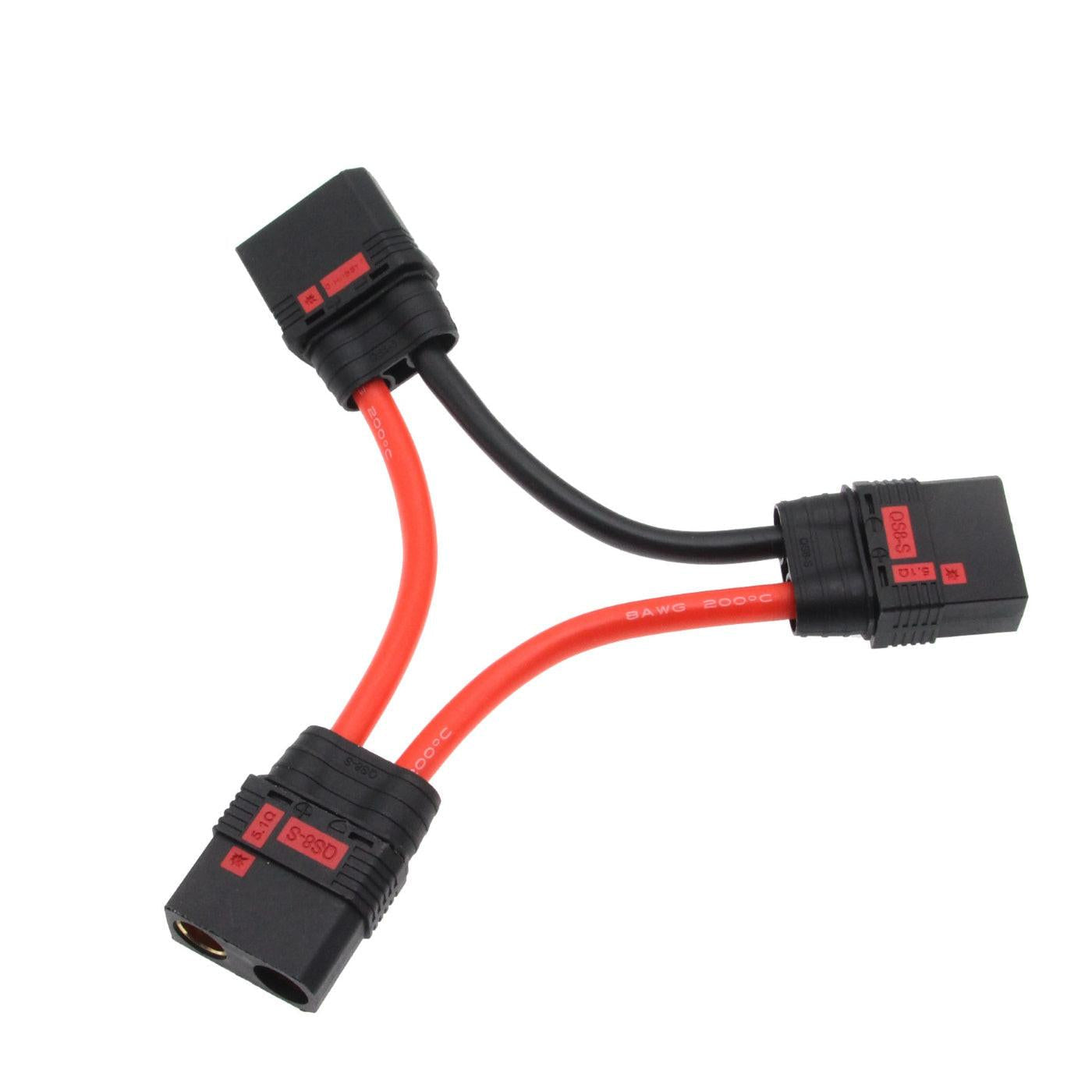

Powerhobby QS8 Male (2) to Female (1) Series Harness 8awg

Powerhobby QS8 Male (2) to Female (1) Series Harness 8awg

Description

Connect two compatible QS8-equipped battery packs in series with the Powerhobby QS8 Series Battery Harness. The harness combines two battery connections into one device connection, allowing the voltage of two matching battery packs to be added together for compatible high-voltage RC systems.

Constructed with heavy-duty 8AWG wiring, this harness is designed for demanding high-current applications such as large-scale RC cars, trucks, boats, and other compatible models. The QS8 anti-spark-style connectors provide a secure connection for properly equipped battery packs and electronic speed controls.

Both batteries used with this harness should have the same chemistry, cell count, capacity, discharge rating, connector type, condition, and similar state of charge.

Features

• Series battery harness
• Two QS8 male battery connections
• One QS8 female device connection
• Heavy-duty 8AWG wiring
• Combines the voltage of two matching battery packs
• Designed for high-current RC applications
• Ready-to-use configuration
• No soldering required

Includes

• One Powerhobby QS8 Series Battery Harness

Specifications

• Brand: Powerhobby
• Configuration: Two male inputs to one female output
• Connector type: QS8
• Wire gauge: 8AWG
• Part number: PHB6730
• UPC: 693037982564

Important

This is a series harness, not a parallel harness. Connecting batteries in series adds their voltage while the capacity remains the same.

Use only matching battery packs and confirm that your ESC and motor system can safely handle the combined voltage before connecting the harness.
