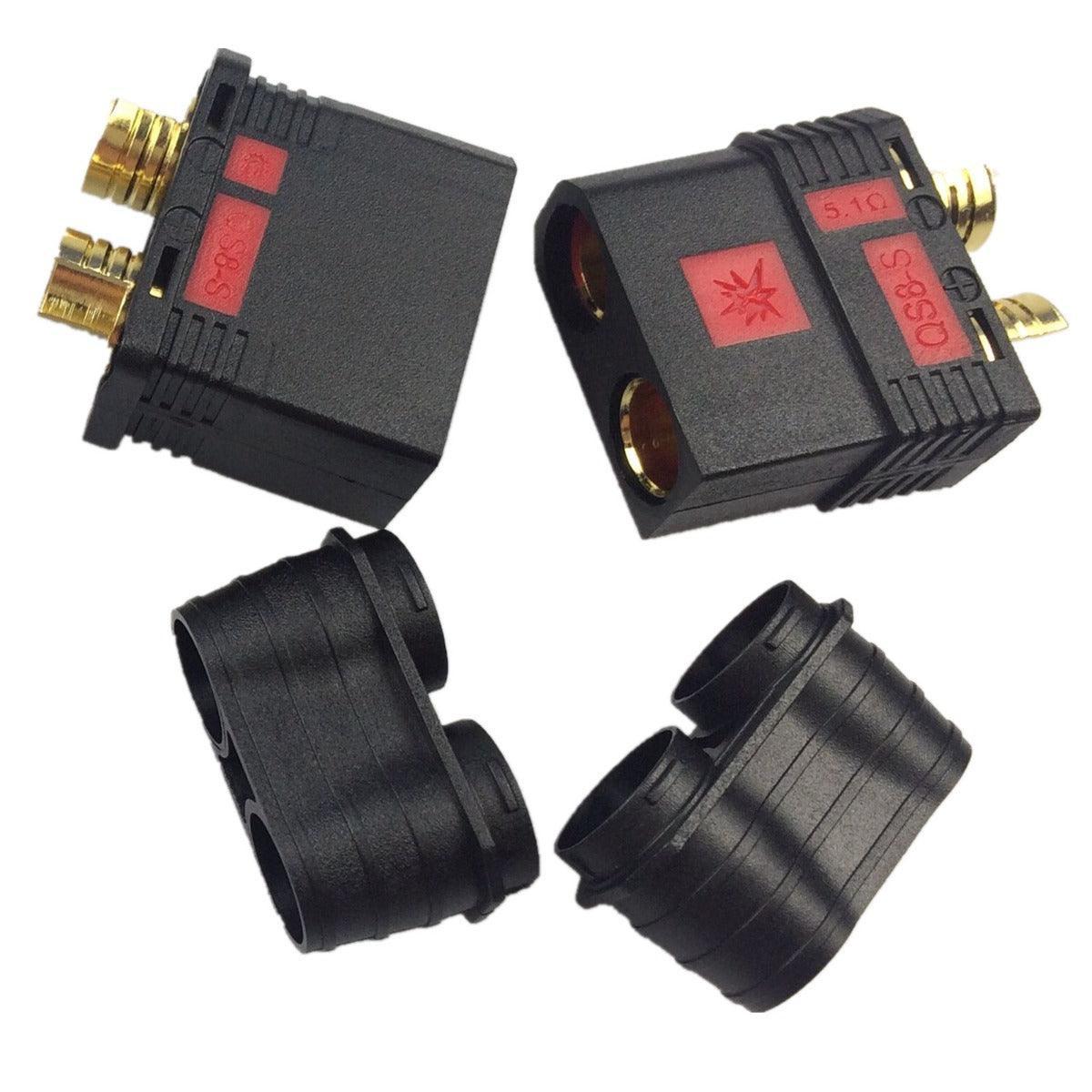

Powerhobby QS8-S Male / Female Plug / Connector ( QS8.0mm-S) SET

Powerhobby QS8-S Male / Female Plug / Connector ( QS8.0mm-S) SET

Description

Build or repair a high-current RC battery connection with the Powerhobby QS8-S Male and Female Connector Set. Designed for powerful electric RC systems, the QS8-S connector uses heavy-duty 8mm gold-plated brass contacts and a built-in anti-spark system to help reduce the spark that can occur when connecting a battery to an ESC with large capacitors.

The keyed connector housing helps prevent reverse-polarity connections, while the included plastic wire guards cover the soldered connections for a clean installation and added protection against accidental short circuits.

This connector set is suitable for high-powered RC cars, trucks, boats, aircraft, and custom electric applications.

Features

• Heavy-duty QS8-S connector system
• 8mm gold-plated brass contacts
• Built-in anti-spark resistor
• Helps reduce connection sparks
• Keyed housing helps prevent reverse polarity
• Rated for high-current RC applications
• Accepts wire up to 6AWG
• Fiber-reinforced nylon housing
• Includes protective wire covers

Includes

• One QS8-S male connector
• One QS8-S female connector
• Protective wire covers

Specifications

• Brand: Powerhobby
• Connector type: QS8-S
• Contact diameter: 8mm
• Continuous-current rating: 110A
• Maximum peak-current rating: 500A
• Maximum wire size: 6AWG
• Contact material: Gold-plated brass
• Housing material: Fiber-reinforced nylon
• Part number: PH-9022
• UPC: 741030684517

Installation Note

Soldering is required. Confirm connector polarity before installation and use a wire gauge suitable for the current requirements of your electronic system.
