Slot.it CH32E HRS2 Anglewinder RTR Chassis 1/32 Slot Car SICH32E

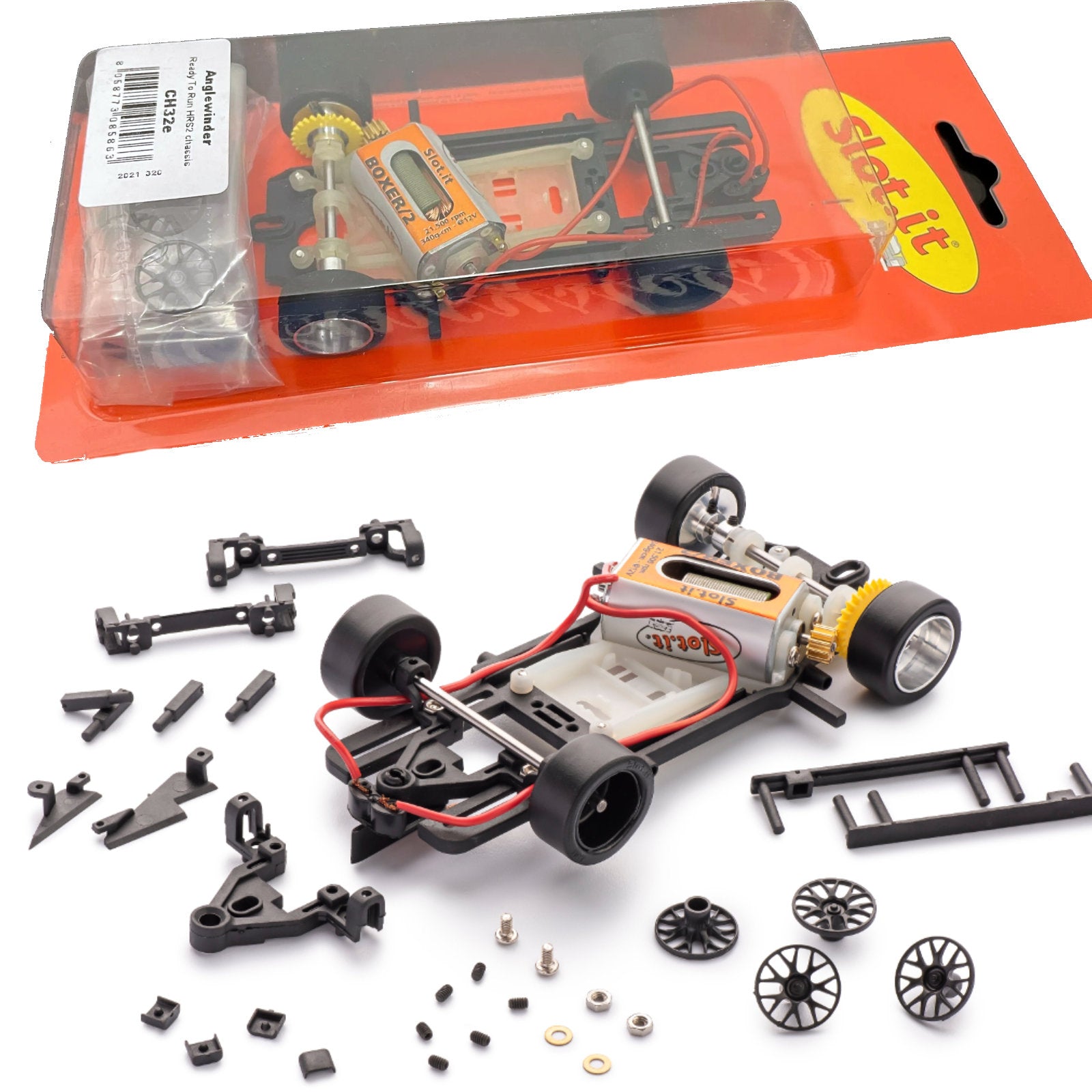

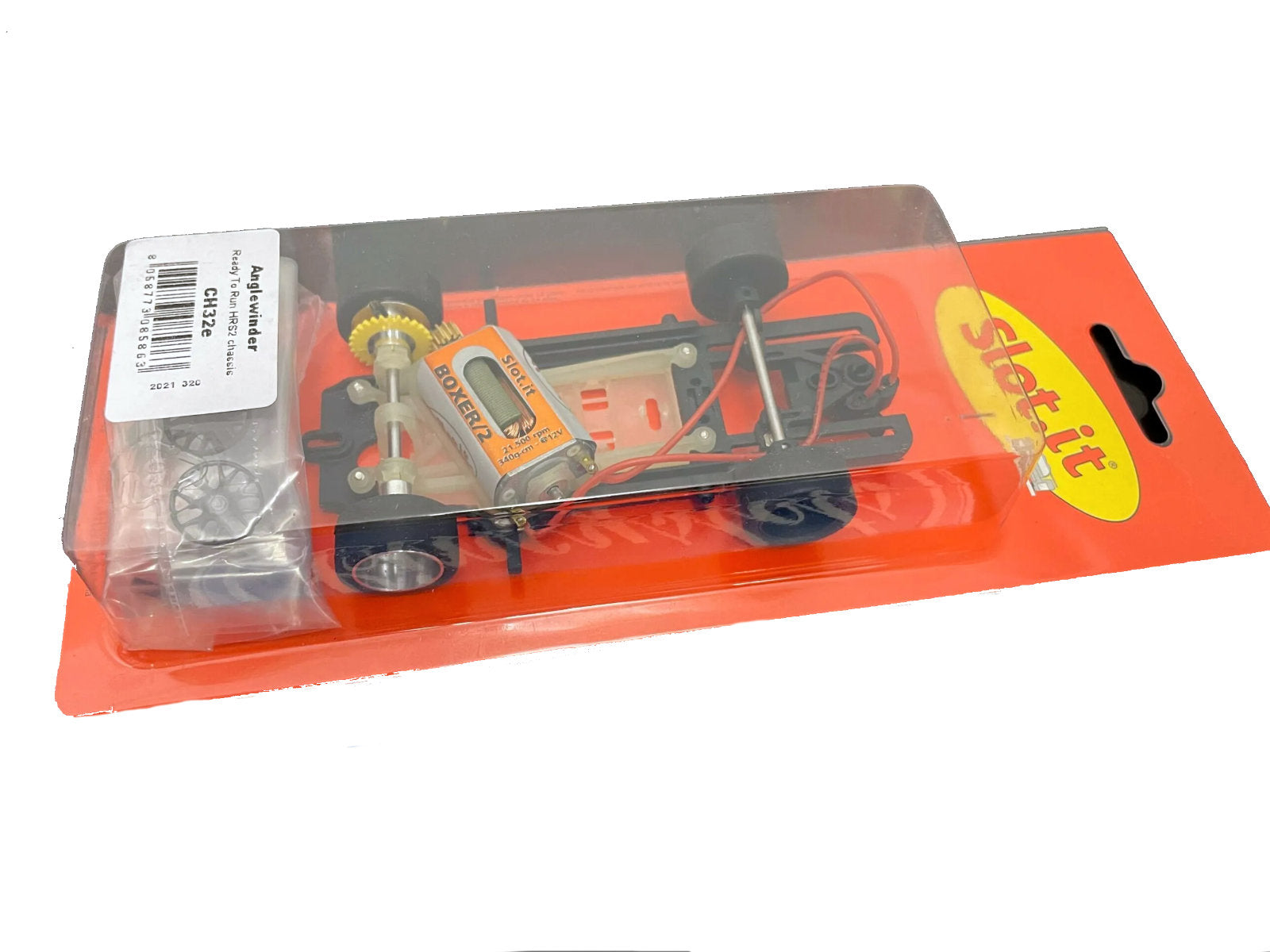

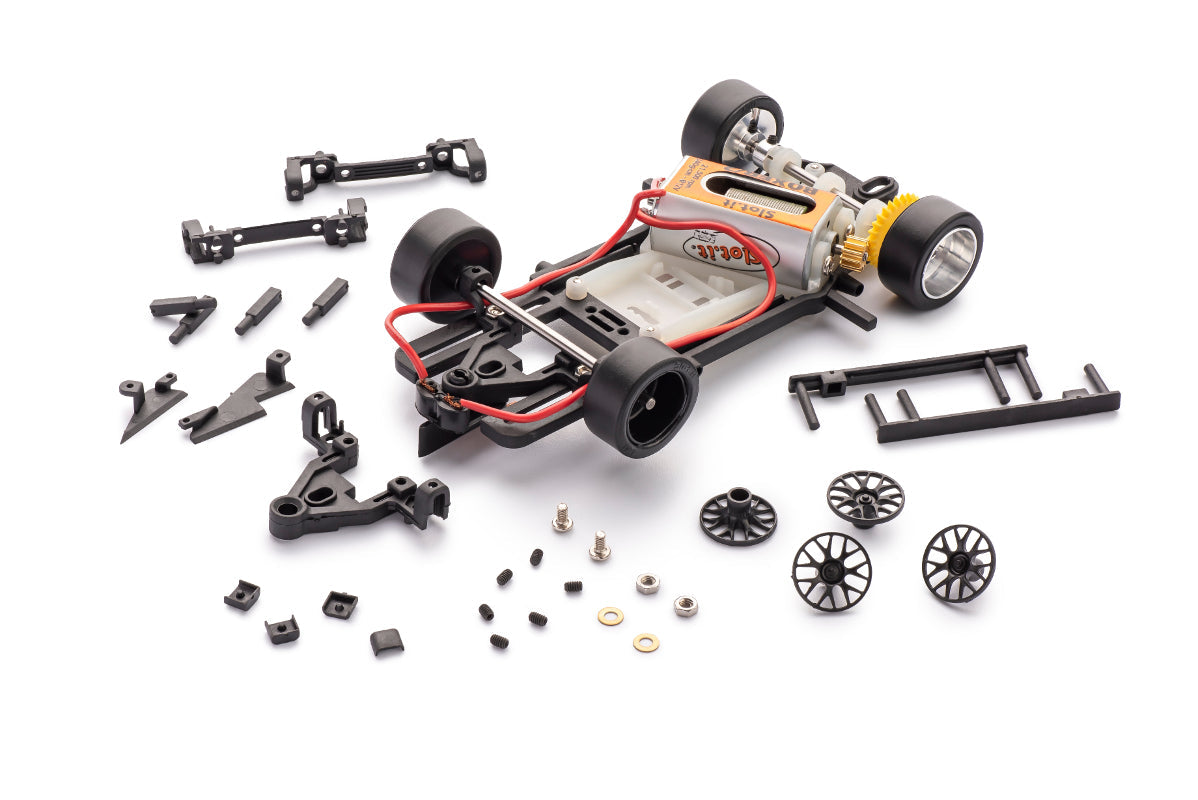

Slot.it HRS2 Anglewinder RTR Chassis

1/32 Scale Analog Slot Car

Slot.it HRS2 complete and ready to run adjustable racing chassis to mount onto a wide range of slot car bodies.

Chassis Data

    Adjustable wheelbase: 64mm-90mm
    Adjustable wheel width: 60.6mm-64mm
    Height: 19mm

Chassis Features

    Anglewinder gear 28t (SIGA1628-PL)
    Rear aluminum wheels 17.3x9.75mm  (SIPA62-ALS)
    Plastic front wheels 17.3x8.2mm
    1167C1 rear tires
    1167C1 front tires
    Long-Can 21,500rpm Boxer/2 motor
    Pickup guide (SICH66)
    12t brass pinion
    1mm offset anglewinder motor mount
    Rear axle stopper
    Adjustable front axle ride height
    Body to chassis cups
    Wheel inserts
    Screws (SICH41b)

HRS Chassis
The HRS chassis is a fully configurable, universal plastic chassis for slot cars. It comprises four main parts: main chassis, front chassis, motor mount, and body mounting means.

Adjustable Wheelbase
The front chassis can be positioned freely within a wheelbase between 64 and 90mm.

Selectable Front Axle Position
The front axle can be placed in one of two possible positions, one of which completely adjustable, making it easy to adjust the distance from the pickup.

Flexible Assembly System
The chassis and the body can be joined with either four mounting posts and cups (HRS1 style), two three-posts sidebars, or, on some cars, where possible, with the car’s own screw holes.
