Spektrum SPMXSM3000 Firma 1400Kv Sensored Brushless Crawler Motor 1/10

Spektrum SPMXSM3000 Firma 1400Kv Sensored Brushless Crawler Motor 1/10

Item Specifics:

Condition: New
Brand: Spektrum
Product Line: Firma
MPN: SPMXSM3000
Type: Brushless Motor
Motor Type: Sensored Brushless
Kv Rating: 1400Kv
Motor Size: 540
Number of Poles: 4-Pole
Sensor Type: Sensored FOC
Compatible Scale: 1:10
Compatible Vehicle Type: Crawler, Rock Racer
Compatible Fuel Type: Electric
Input Voltage: 7.4–11.1V
Battery Compatibility: 2S–3S LiPo
Maximum Continuous Current: 25A
Connector Type: 3.5 mm Bullet
Shaft Diameter: 1/8 in / 3.175 mm
Motor Diameter: 36 mm
Motor Length: 58 mm
Features: Water-Resistant, Sensored, Ball Bearings
Model Grade: Hobby Grade
Quantity: 1
Vintage: No

Product Description:

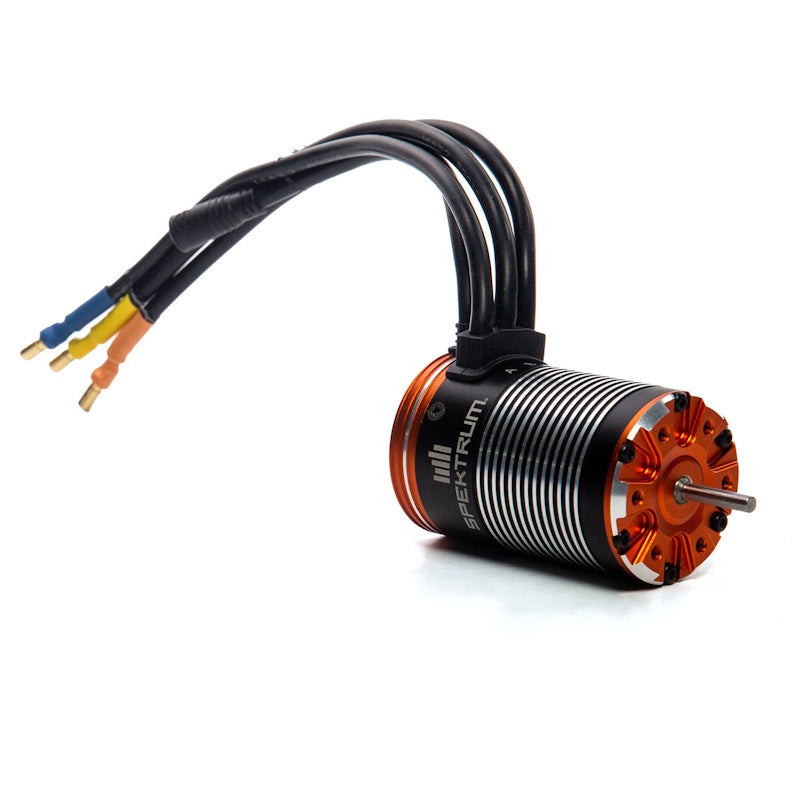

Upgrade your 1/10-scale crawler or rock racer with the Spektrum Firma SPMXSM3000 1400Kv Sensored Brushless Crawler Motor.

Designed for smooth low-speed control and high-torque performance, this motor features a low-cogging 4-pole, 8-magnet rotor configuration. Its sensored FOC design provides precise rotor-position feedback for consistent throttle response during technical crawling and other low-speed applications.

The CNC-machined aluminum housing, insulated high-purity copper windings, precision ball bearings and hardened-steel output shaft provide reliable performance and durability. Preinstalled 3.5 mm gold-plated bullet connectors help simplify installation.

Key Features:

• Spektrum Firma 1400Kv sensored brushless crawler motor
• Designed for 1/10-scale crawlers and rock racers
• Suitable for operation with 2S–3S LiPo batteries
• Smooth low-speed control and strong torque output
• Low-cogging 4-pole, 8-magnet rotor design
• Sensored FOC motor technology
• Internal magnetic encoder provides precise rotor-position signals
• Polarity protection simplifies motor-to-ESC connection
• CNC-machined aluminum motor housing
• Insulated high-purity copper windings
• Precision ball bearings provide smooth rotation
• Hardened-steel 1/8-inch output shaft
• Preinstalled 3.5 mm gold-plated bullet connectors
• Water-resistant sensor connection with locking plug and gasket
• Excellent upgrade for compatible 540-size brushed motor systems

Specifications:

Motor Type: Sensored brushless
Motor Size: 540
Kv Rating: 1400Kv
Number of Poles: 4
Input Voltage: 7.4–11.1V
Battery Compatibility: 2S–3S LiPo
Maximum Continuous Current: 25A
Sensor Type: Sensored FOC
Connector Type: 3.5 mm bullet connectors
Motor Diameter: 1.42 in / 36 mm
Motor Length: 2.27 in / 58 mm
Shaft Diameter: 1/8 in / 3.175 mm
Bearings: Precision ball bearings
Forward and Reverse: Yes
Water Resistance: Yes

Compatibility:

Designed for compatible 1/10-scale RC crawlers and rock racers that accept:

• A standard 540-size motor mounting pattern
• A motor measuring approximately 36 mm in diameter
• A 1/8-inch motor shaft
• Pinion gears with a 1/8-inch bore
• 2S–3S LiPo power systems

Please compare the motor dimensions, mounting pattern, shaft size and electronic requirements with your vehicle before ordering.

Package Includes:

• 1 Spektrum Firma 1400Kv Sensored Brushless Crawler Motor

Needed to Complete:

• Spektrum Firma 60A Sensored Brushless Smart Crawler ESC
• Compatible 2S or 3S LiPo battery
• Compatible pinion gear with a 1/8-inch bore
• RC vehicle and installation tools

Important Notes:

• Electronic speed control, battery, pinion gear and RC vehicle are not included.
• This motor requires a compatible sensored brushless crawler ESC.
• Spektrum specifies the Firma 60A Sensored Brushless Smart Crawler ESC for use with this motor.
• Confirm motor dimensions, connector type and shaft diameter before purchasing.
• Product packaging may vary.
