Tamiya 56314 Knight Hauler 1/14 RC Semi Truck Tractor Kit 3-Speed

Tamiya 56314 Knight Hauler 1/14 RC Semi Truck Tractor Kit 3-Speed

Item Specifics:

Brand: Tamiya
Model: Knight Hauler
Manufacturer Part Number: 56314
UPC: 4950344563142
Scale: 1:14
Vehicle Type: Semi Truck / Tractor Truck
Power Source: Electric
Motor Type: Brushed 540-Type
Drive Type: 6x4 / Dual Rear-Axle Drive
Transmission: 3-Speed
Body Material: ABS Plastic
Chassis Material: Aluminum and Polycarbonate
Suspension: Leaf Spring
Recommended Surface: On-Road
Product Type: Unassembled RC Kit
Assembly Required: Yes

Product Description:

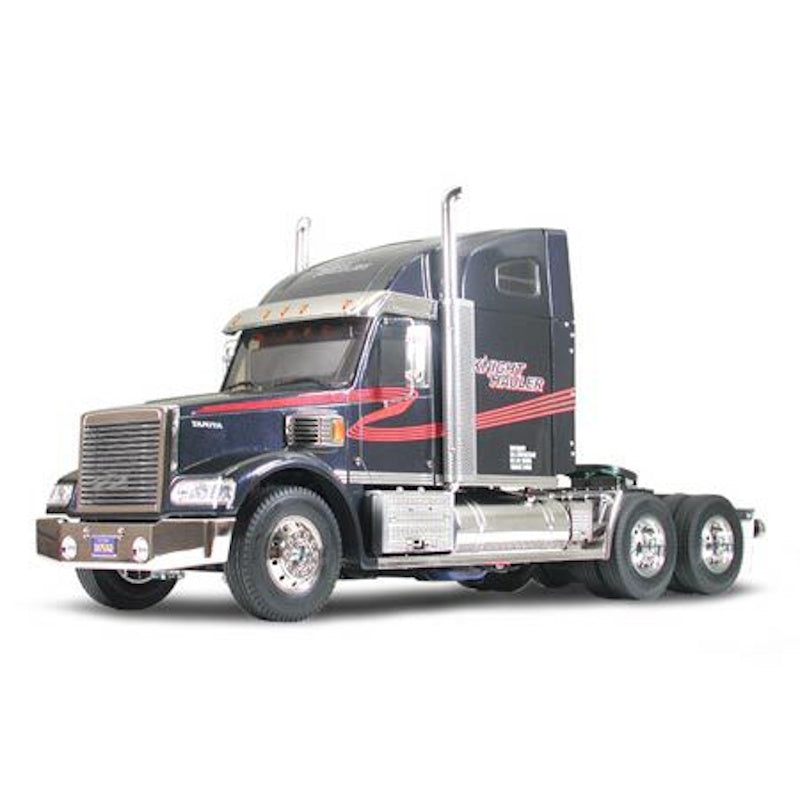

Build a highly detailed American-style big rig with the Tamiya 56314 Knight Hauler 1/14 Scale RC Tractor Truck Kit.

The Knight Hauler features an original custom semi-truck design inspired by the full-size tractor trucks commonly seen traveling across North America. Its long hood, aerodynamic sleeper cab, large roof spoiler and extensive metal-plated details give the truck an impressive custom appearance.

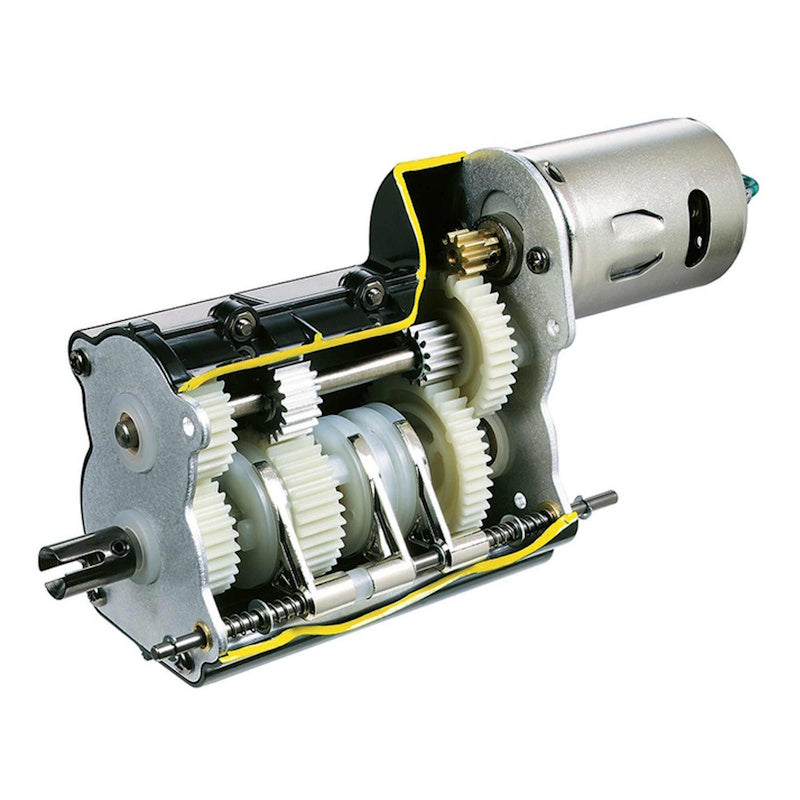

The durable ladder-frame chassis is constructed from aluminum side channels and reinforced cross members. A front-mounted 540-type brushed motor transfers power through a functional three-speed transmission to both rear axles.

Gear changes can be operated remotely using the required radio system and transmission-shift servo. Three-bevel differential gears in the driven rear axles provide smooth cornering, while the metal leaf-spring suspension creates realistic movement and handling.

The molded ABS body requires painting, allowing the builder to create a personalized color scheme.

Key Features:

• Highly detailed 1/14-scale RC tractor-truck kit
• Original American custom semi-truck styling

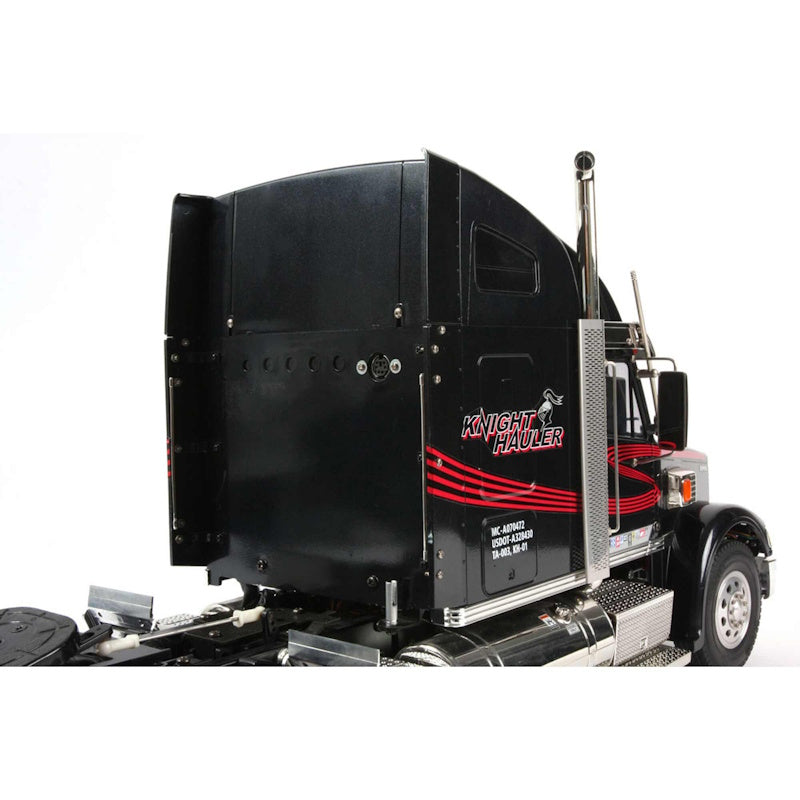

• Aerodynamic sleeper cab
• Large roof-mounted spoiler
• Aluminum ladder-frame chassis
• Front-mounted 540-type brushed motor
• Functional three-speed transmission
• Radio-operated gear shifting
• Dual driven rear axles
• Three-bevel differential gears
• Metal leaf-spring suspension
• Friction-type dampers
• Detailed cab interior
• Adjustable side mirrors

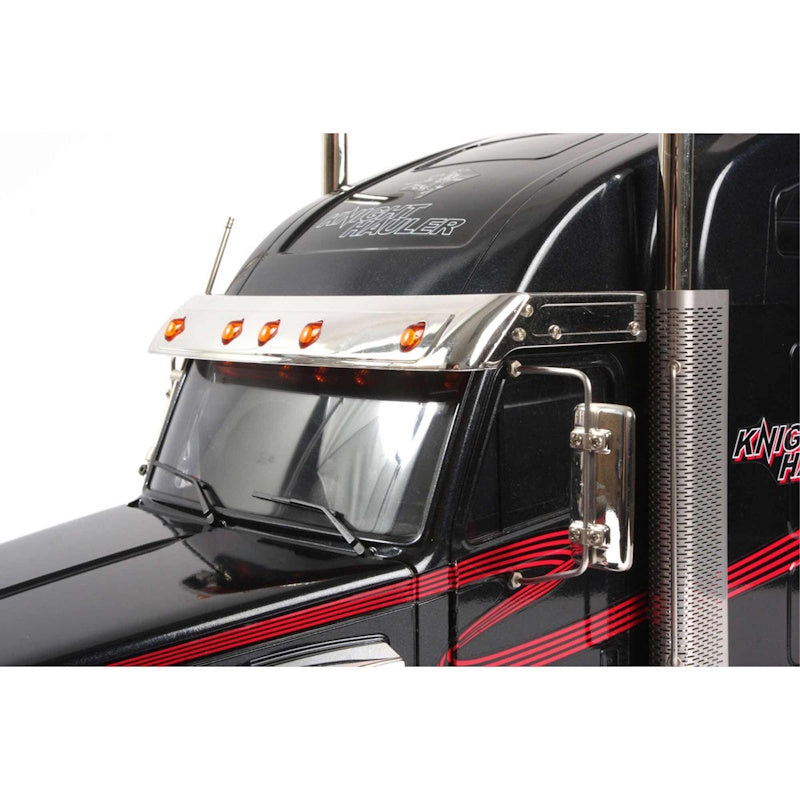

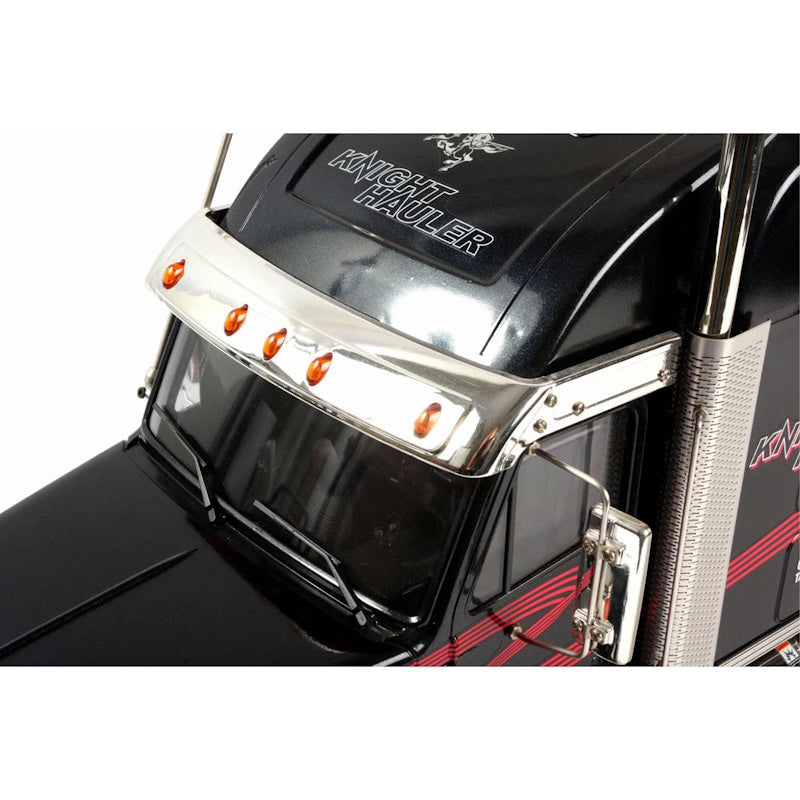

• Transparent orange roof lights
• Extensive metal-plated exterior components
• Included trailer coupler
• Compatible with Tamiya 1/14-scale semi-trailers
• Compatible with optional Tamiya multifunction units

Metal-Plated Details Include:

• Front bumper
• Radiator grille
• Roof-mounted air horns
• Side mirrors
• Exhaust components
• Air cleaners

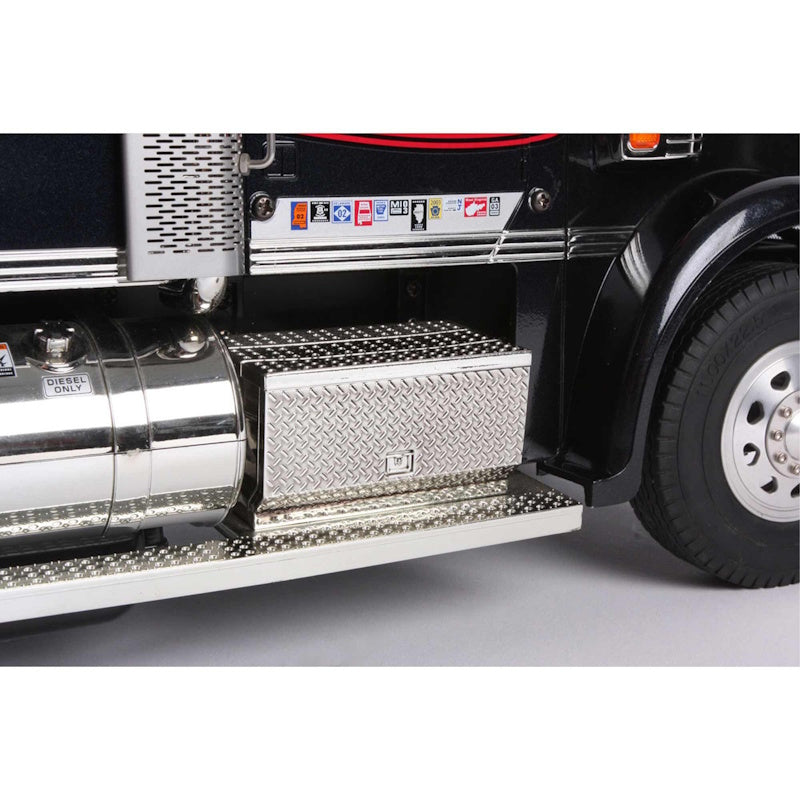

• Fuel tanks
• Wheels
• Additional exterior trim

Specifications:

Length: 630mm / 24.80 inches
Width: 186mm / 7.32 inches
Height: 295mm / 11.61 inches
Ground Clearance: 19mm / 0.75 inch
Wheelbase: 476mm / 18.74 inches
Front Track Width: 156mm
Rear Track Width: 138mm
Approximate Fully Equipped Weight: 3.1kg / 6.8 pounds

Transmission Gear Ratios:

• First Gear: 32.49:1
• Second Gear: 17.76:1
• Third Gear: 10.66:1

Required to Complete:

• Compatible four-channel transmitter and receiver
• Steering servo
• Transmission-shift servo
• Electronic speed controller
• 7.2V battery pack
• Compatible battery charger
• Transmitter batteries
• Tamiya-compatible model paint
• Assembly tools

Optional Multifunction System:

The optional Tamiya MFC-01 or MFC-03 Multifunction Control Unit can add realistic operating features, including:

• Engine sounds
• Air-horn sounds
• Headlights and roof lights
• Turn signals and hazard lights
• Engine-rev mode
• Realistic vibration effects
• Support for compatible powered trailer legs

Package Includes:

• Tamiya Knight Hauler assembly kit
• Molded ABS truck body
• Aluminum ladder-frame chassis components
• 540-type brushed motor
• Three-speed transmission components
• Trailer coupler
• Tires and wheels
• Decals
• Assembly hardware
• Instruction manual

Important Information:

This product is an unassembled RC model kit. Assembly and painting are required.

Radio equipment, servos, electronic speed controller, battery, charger, paint, tools, multifunction unit and trailer are not included unless specifically stated otherwise.
