Tamiya 56344 Grand Hauler 1/14 RC Semi Truck Tractor Kit 3-Speed

Tamiya 56344 Grand Hauler 1/14 RC Semi Truck Tractor Kit 3-Speed

Item Specifics:

Brand: Tamiya
Model: Grand Hauler
Manufacturer Part Number: 56344
UPC: 4950344563449
Scale: 1:14
Vehicle Type: Semi Truck / Tractor Truck
Power Source: Electric
Motor Type: Brushed 540-Type
Drive Type: Dual Rear-Axle Drive
Color: Customizable / Unpainted
Body Material: ABS Plastic
Chassis Material: Aluminum and Resin
Transmission: 3-Speed
Suspension: Metal Leaf Spring
Product Type: Unassembled RC Kit
Recommended Surface: On-Road
Assembly Required: Yes

Product Description:

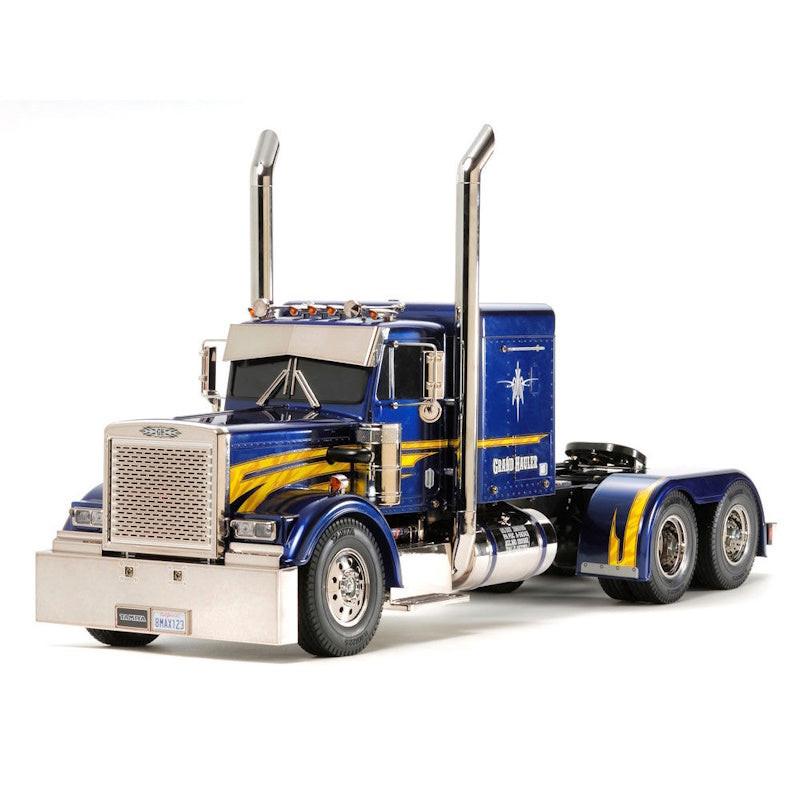

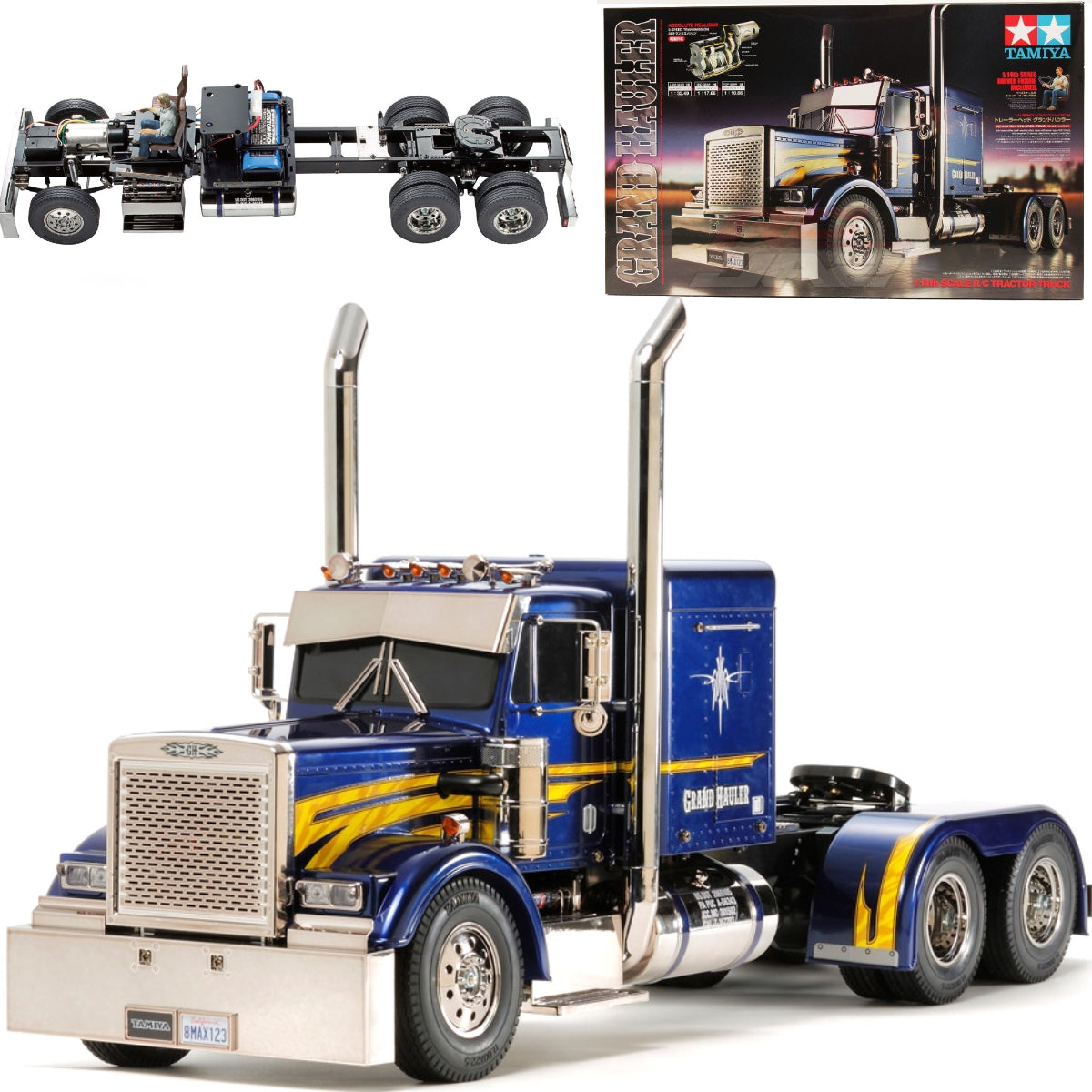

Build your own highly detailed custom big rig with the Tamiya 56344 Grand Hauler 1/14 Scale RC Tractor Truck Kit.

Inspired by customized North American semi trucks, the Grand Hauler features an extended ladder-frame chassis, sleeper-style cab, low-mounted body components and extensive chrome-plated detailing. Its impressive size and realistic construction make it an excellent choice for RC truck enthusiasts and scale-model builders.

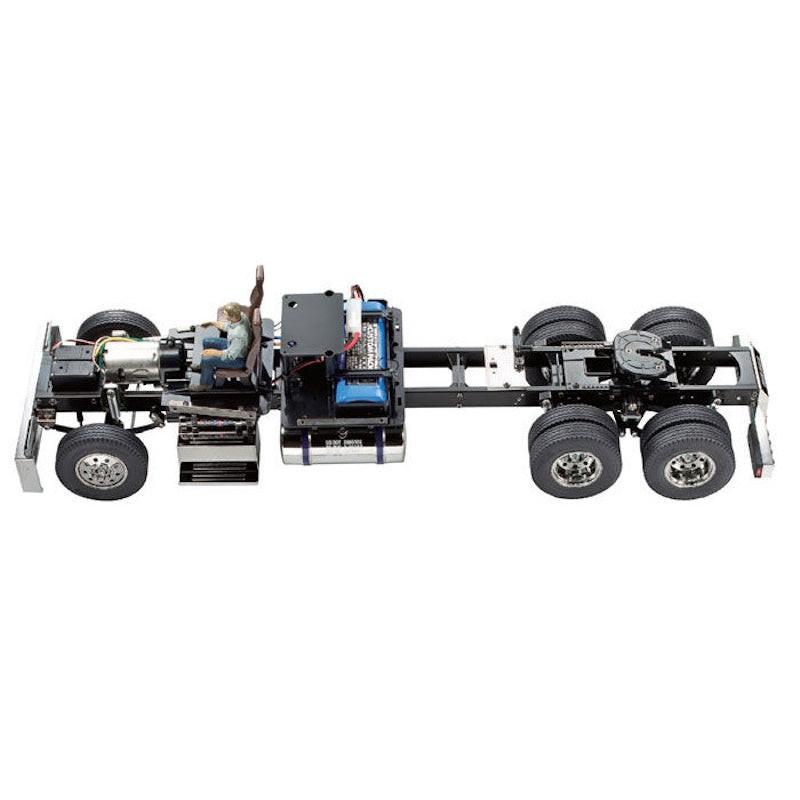

The chassis uses aluminum side channels with reinforced resin cross members. A front-mounted 540-type brushed motor transfers power through a functional three-speed transmission to both rear axles. Built-in rear differentials allow smooth cornering, while metal leaf springs and aluminum friction dampers provide realistic suspension movement.

The hard-plastic body is supplied unpainted, allowing the builder to create a completely customized color scheme.

Key Features:

• Highly detailed 1/14-scale RC tractor-truck kit
• Custom North American big-rig styling

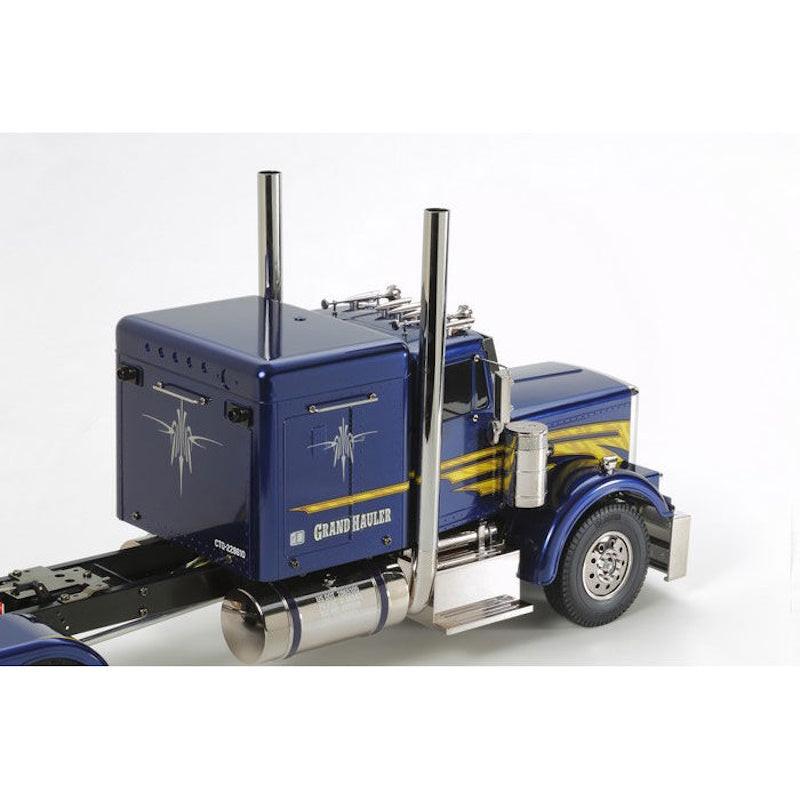

• Extended sleeper cab and long ladder-frame chassis
• Aluminum chassis side channels
• Reinforced resin cross members
• Front-mounted 540-type brushed motor
• Functional three-speed transmission
• Radio-operated gear shifting
• Dual driven rear axles
• Built-in three-bevel differentials
• Metal leaf-spring suspension
• Aluminum friction dampers
• Detailed cab interior

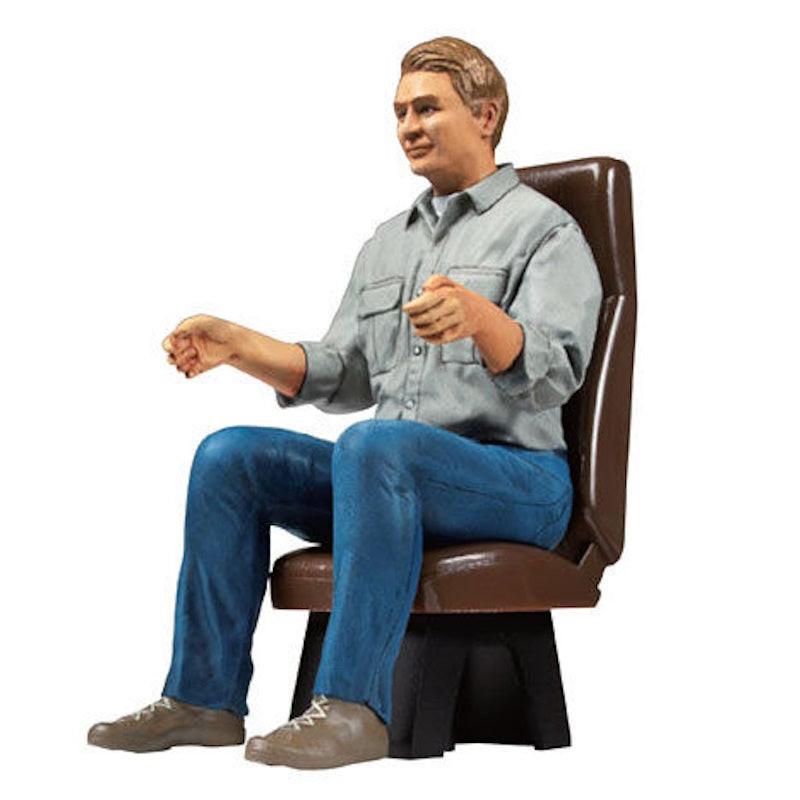

• Included driver figure
• Extensive chrome-plated exterior components
• Photo-etched air-cleaner intake details
• Adjustable side mirrors
• Trailer coupler included
• Compatible with Tamiya 1/14-scale semi-trailers
• Compatible with optional Tamiya multifunction control units

Chrome-Plated and Scale Details Include:

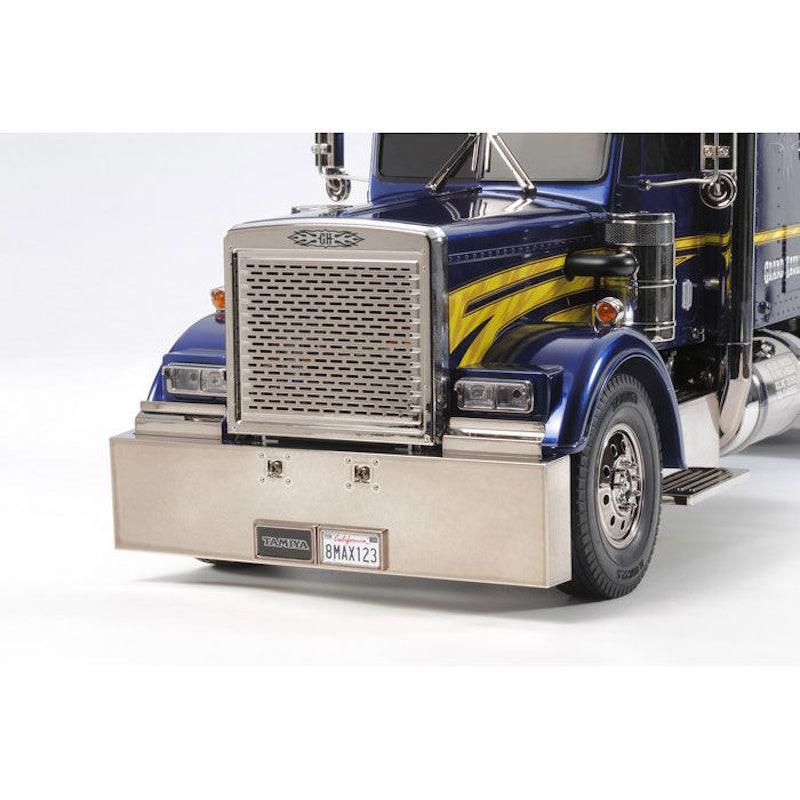

• Front bumper
• Radiator grille

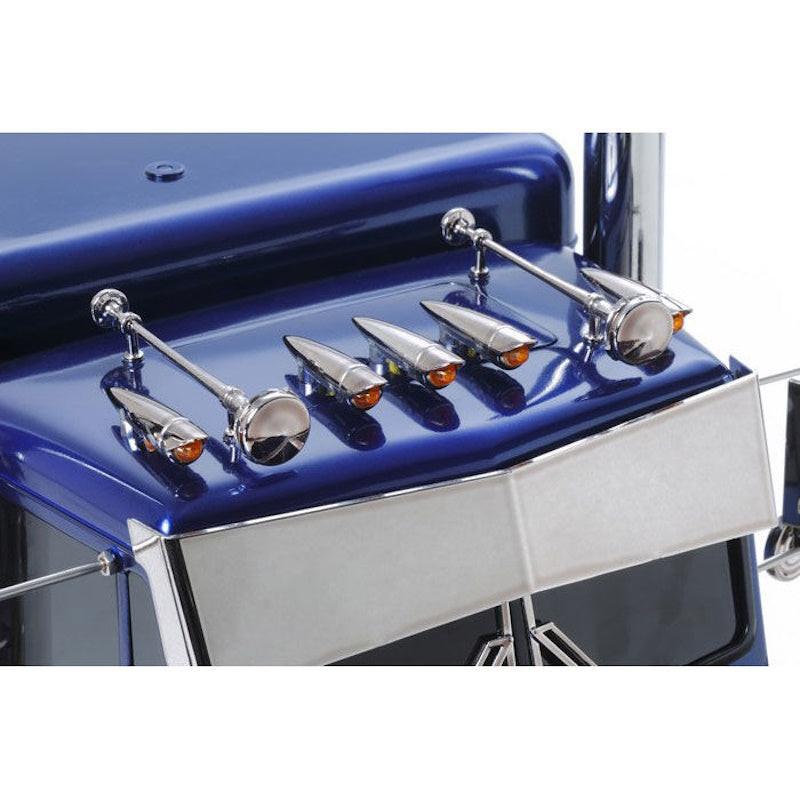

• Roof-mounted air horns
• Roof light bezels
• Large sun visor

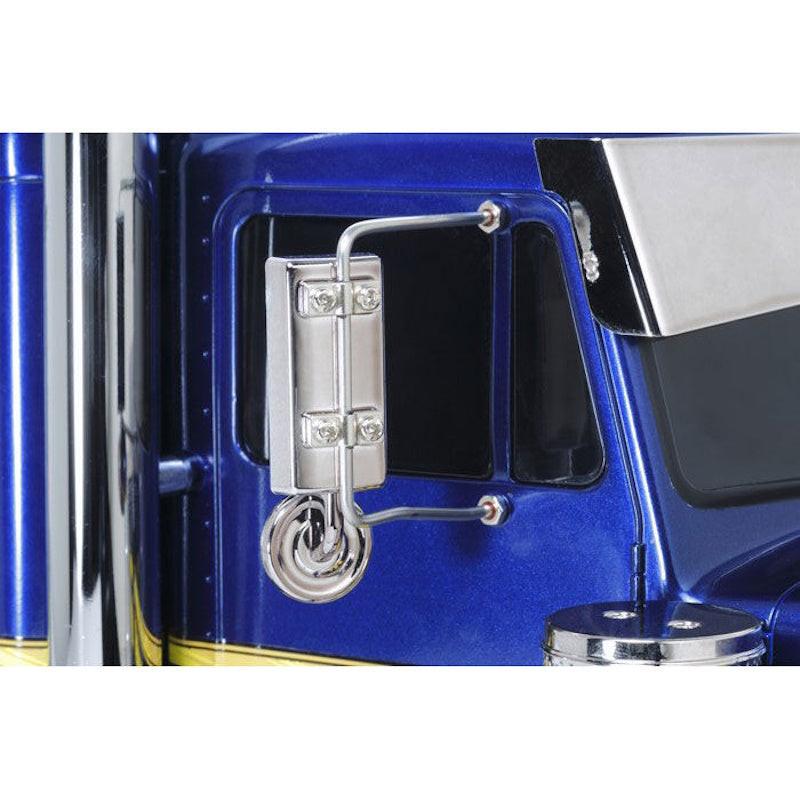

• Side mirrors
• Curb mirrors

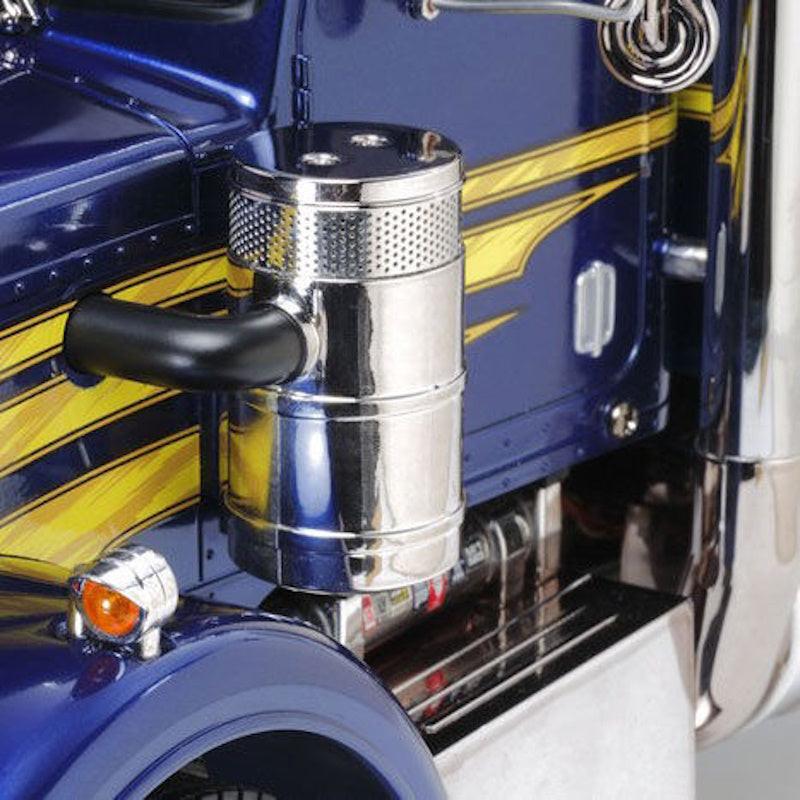

• Air cleaners
• Exhaust covers
• Wheels

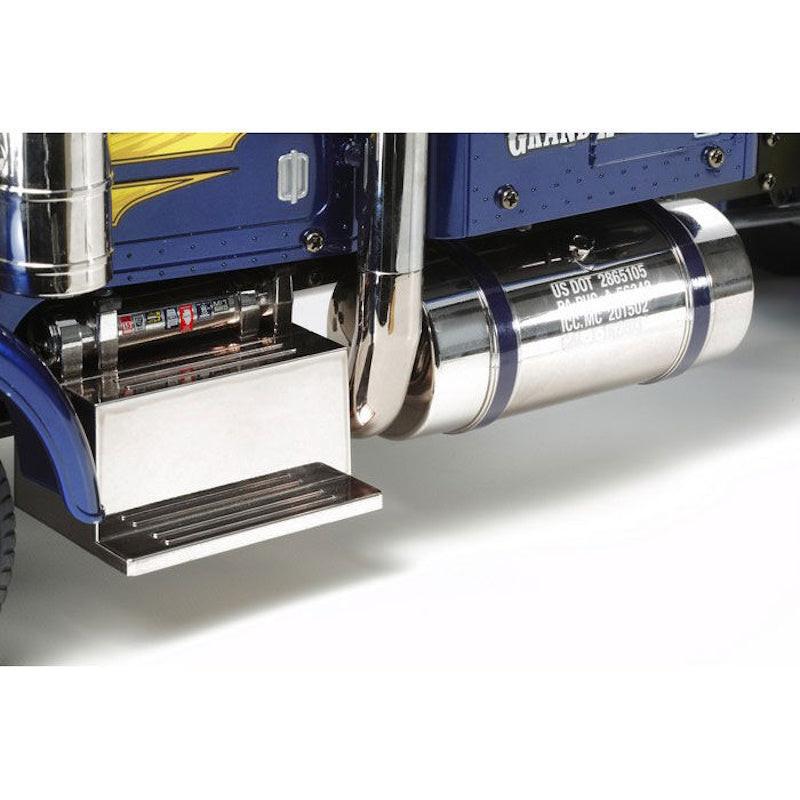

• Fuel tanks

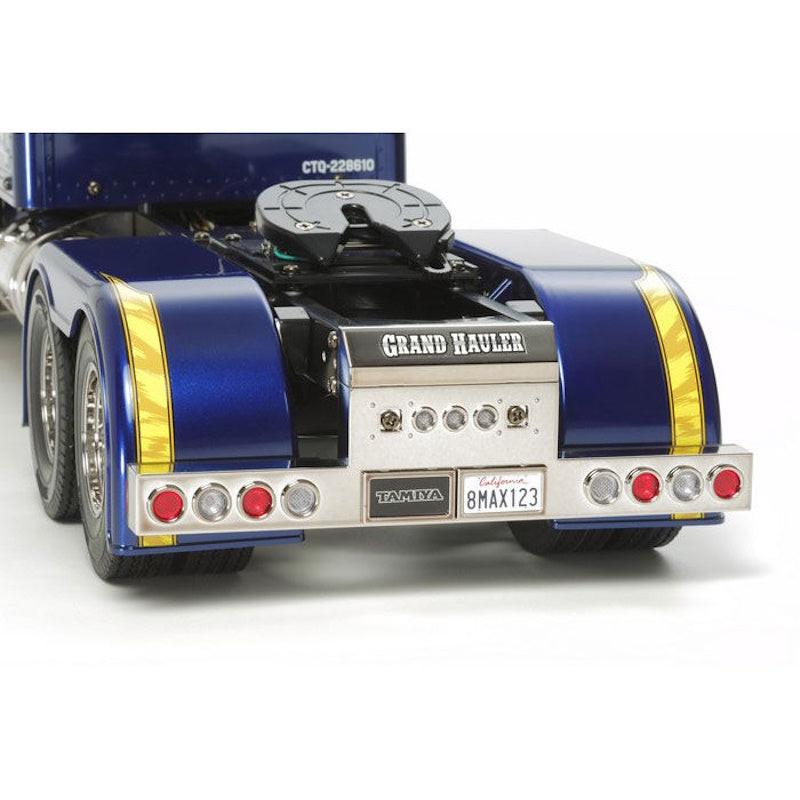

• Rear bumper and exterior trim

Specifications:

Length: 692mm / 27.24 inches
Width: 192mm / 7.56 inches
Height: 330mm / 12.99 inches
Approximate Weight: 3.9kg / 8.6 pounds when fully equipped
Wheelbase: 433mm + 103mm
Front Track Width: 156mm
Rear Track Width: 138mm
Tire Diameter: 83mm
Tire Width: 22mm

Transmission Gear Ratios:

• First Gear: 32.49:1
• Second Gear: 17.76:1
• Third Gear: 10.66:1

Required to Complete:

• Compatible four-channel transmitter and receiver
• Steering servo
• Transmission-shift servo
• Compatible electronic speed controller
• 7.2V battery pack
• Compatible battery charger
• Transmitter batteries
• Tamiya-compatible model paint
• Assembly tools

An optional Tamiya MFC-01 or MFC-03 Multifunction Control Unit may be installed to add realistic lighting, engine sounds, air-horn sounds and vibration effects.

Package Includes:

• Tamiya Grand Hauler assembly kit
• Hard-plastic truck body
• Aluminum ladder-frame chassis components
• 540-type brushed motor
• Three-speed transmission
• Driver figure
• Trailer coupler
• Tires and wheels
• Decals
• Assembly hardware
• Instruction manual

Important Information:

This is an unassembled RC model kit. The body requires painting and assembly.

Radio equipment, servos, electronic speed controller, battery, charger, paint, tools, multifunction unit and trailer are not included unless specifically stated otherwise.
