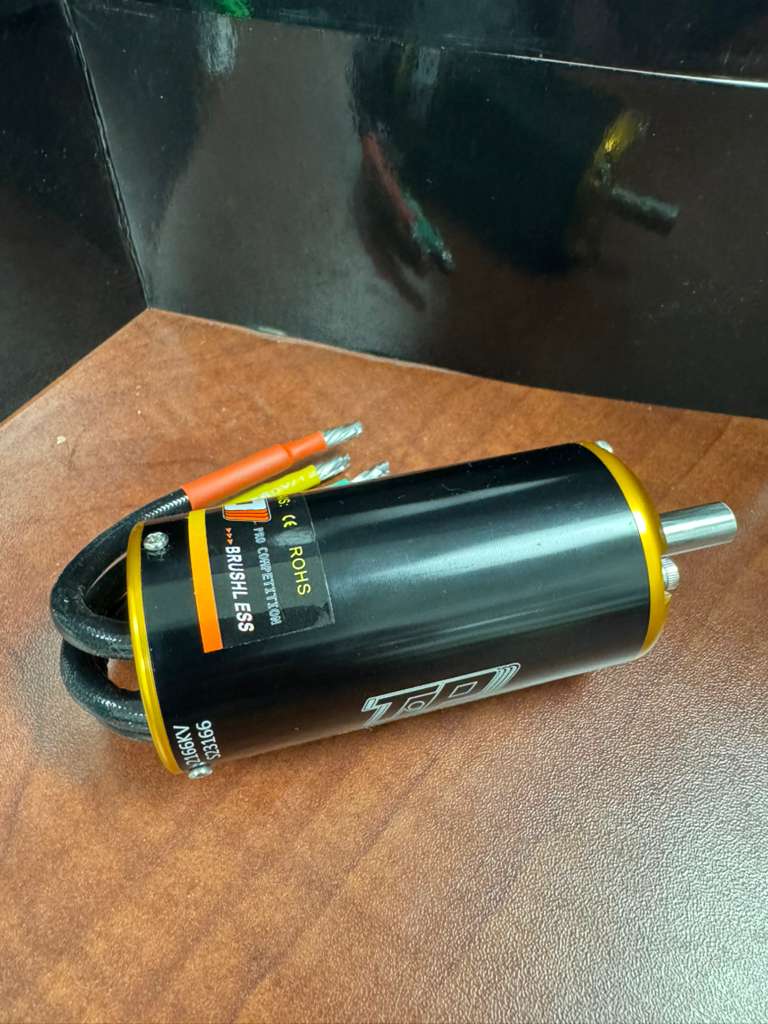

TP POWER 4050SCM 3980KV MOTOR (UP TO 6s) 8MM

TP POWER 4050SCM 3980KV MOTOR (UP TO 6s) 8MM

TP Power motors are made of the best materials that are available, and have high efficiencies (>90%) required for the most demanding applications.The TP 4050-SCM Series is a more powerful version of the regular 4050 series motor, with 110K max burst RPM.

Parameters:

Can: Smooth

Winding: 6D

KV: 3980

Max Amps (A): 181

Max Volt (V): 27.6

Continuous Power (W): 2000

Max Power (W): 5000 for 10 seconds

Max RPM: 110K for 10 seconds

Internal Resistance (Ohm): 0.0042

No-load Current (A): 6.1

Shaft Diameter (mm): 8mm in stock

Diameter X Length (mm): 40 X 82

Output Shaft Length (mm): 18

Bolt Pattern: 4 - (M3) - 25mm (bolt pattern diameter)

Weight: 475 g

Pole: 2-pole
