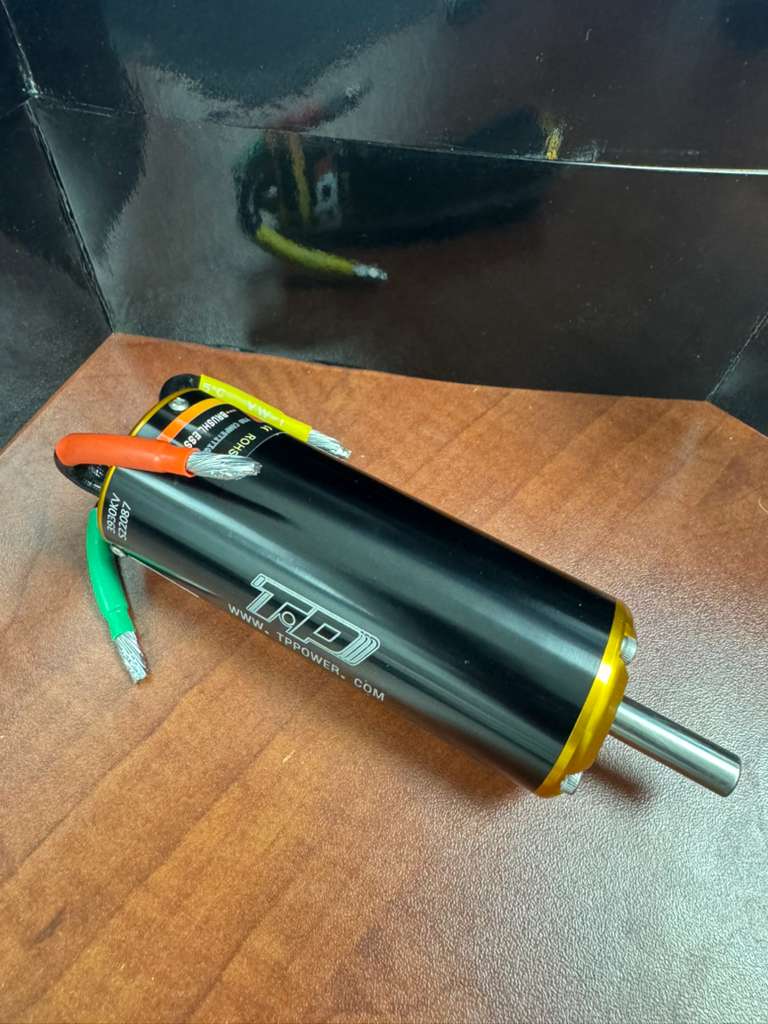

TP POWER 4070SCM 2950KV MOTOR (UP TO 8s) 8mm Shaft

TP POWER 4070 SCM 2950 KV MOTOR (UP TO 8s) 8mm Shaft

TP Power motors are made of the best materials that are available, and have high efficiencies (>90%) required for the most demanding applications.The TP 4070-SCM Series is a more powerful version of the regular 4070 series motor, with 100K max burst RPM.

Parameters:

Can: Smooth

Winding:

KV: 2950

Max Amps (A): 225

Max Volt (V): 33.9

Continuous Power (W): 3850

Max Power (W): 7600 for 10 seconds

Max RPM: 100K for 10 seconds

Internal Resistance (Ohm): 0.0042

No-load Current (A): 3.9

Shaft Diameter (mm): 8mm in stock

Diameter X Length (mm): 40 X 82

Output Shaft Length (mm): 18

Weight: 475 g

Pole: 2-pole
