West3D Stainless Steel Fastener Kit for Micron (BDF)
West3D Stainless Steel Fastener Kit for Micron (BDF)
Couldn't load pickup availability
West3D's Stainless Steel Fastener kit for the Micron comes with all the fasteners (and extras of each in case a the screw monster eats one) you could need for your build. If you want the best damn fastener ("BDF") kit on the market, that won't make that beast of a printer you're building cry when its covered in rust, this is the kit you need.
If you also need a hex key set, we've got you covered. See our set here.
Please follow recommendations for the best threadlocker application for your use (Loctite® Threadlocker Blue 242 is what we recommend).

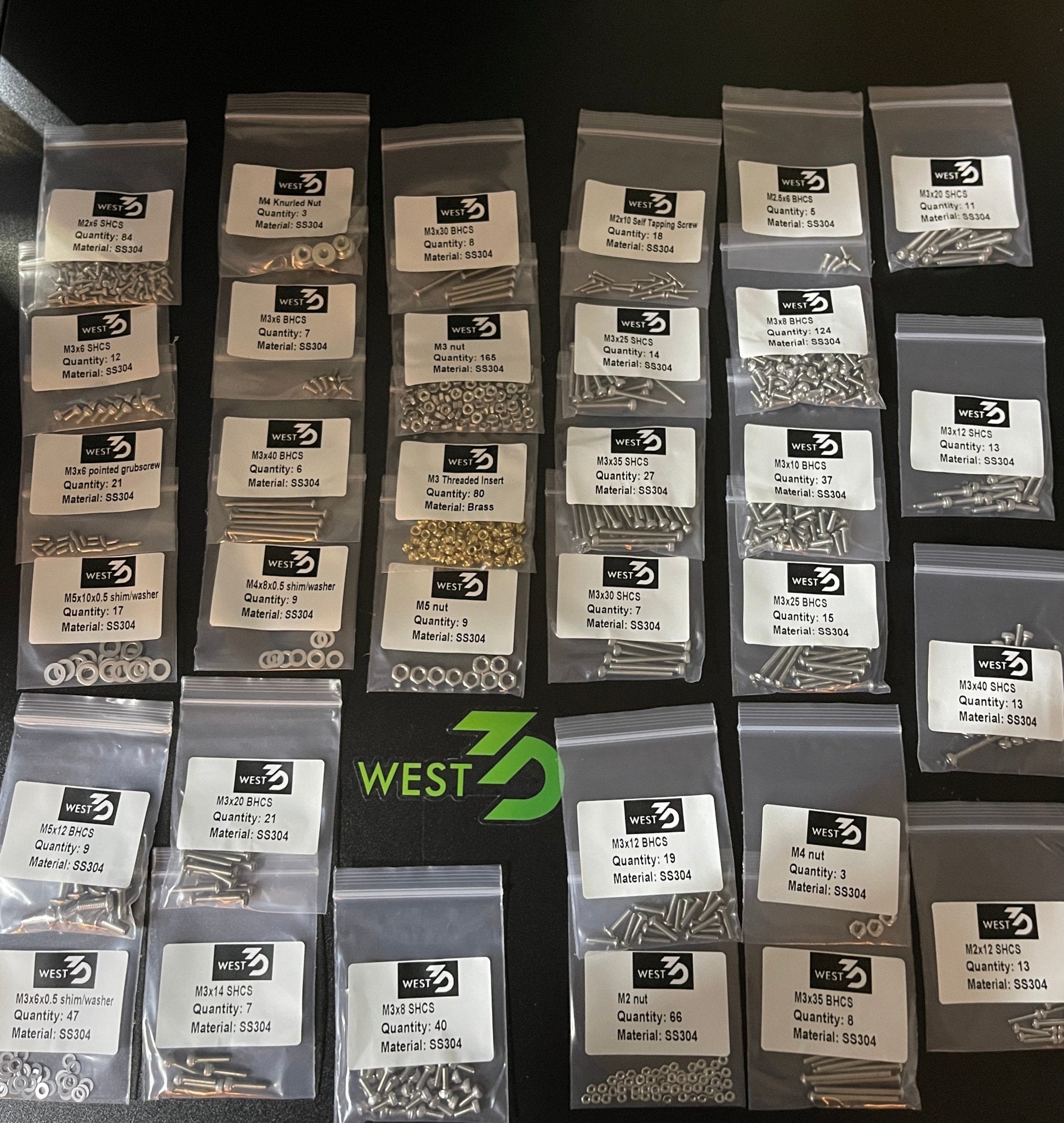

Below are a list of parts included, their quantities and associated material.
Please note: we have added a supplemental kit to account for changes made to the BOM, we are leaving the original bolts in here as well, so you get a bunch of EXTRAs! We have not increased the price, consider this a free gift.
Supplemental kit:
| Description | Quantity | Material |
| M3 Threaded Insert | 20 | Brass |
| M3x6 BHCS | 2 | Stainless Steel 304 |
| M3x8 BHCS | 109 | Stainless Steel 304 |
| M3x12 BHCS | 10 | Stainless Steel 304 |
| M3x25 BHCS | 1 | Stainless Steel 304 |
| M2x6 SHCS | 26 | Stainless Steel 304 |
| M2 nut | 33 | Stainless Steel 304 |
| M3 nut | 22 | Stainless Steel 304 |
Original Kit:
| Description | BOM Quantity | BDF Quantity | Material |
| M3 Threaded Insert | 72 | 80 | Brass |
| M3x6 pointed grubscrew | 16 | 21 | Stainless Steel 304, cone point |
| M2x10 Self Tapping Screw | 13 | 18 | Stainless Steel 304 |
| M2.5x6 BHCS | 2 | 5 | Stainless Steel 304 |
| M3x6 BHCS | 2 | 7 | Stainless Steel 304 |
| M3x8 BHCS | 112 | 124 | Stainless Steel 304 |
| M3x10 BHCS | 32 | 37 | Stainless Steel 304 |
| M3x12 BHCS | 14 | 19 | Stainless Steel 304 |
| M3x20 BHCS | 16 | 21 | Stainless Steel 304 |
| M3x25 BHCS | 10 | 15 | Stainless Steel 304 |
| M3x30 BHCS | 3 | 8 | Stainless Steel 304 |
| M3x35 BHCS | 3 | 8 | Stainless Steel 304 |
| M3x40 BHCS | 1 | 6 | Stainless Steel 304 |
| M5x12 BHCS | 4 | 9 | Stainless Steel 304 |
| M2x6 SHCS | 76 | 84 | Stainless Steel 304 |
| M2x12 SHCS | 8 | 13 | Stainless Steel 304 |
| M3x6 SHCS | 7 | 12 | Stainless Steel 304 |
| M3x8 SHCS | 35 | 40 | Stainless Steel 304 |
| M3x12 SHCS | 8 | 13 | Stainless Steel 304 |
| M3x14 SHCS | 2 | 7 | Stainless Steel 304 |
| M3x20 SHCS | 6 | 11 | Stainless Steel 304 |
| M3x25 SHCS | 9 | 14 | Stainless Steel 304 |
| M3x30 SHCS | 2 | 7 | Stainless Steel 304 |
| M3x35 SHCS | 22 | 27 | Stainless Steel 304 |
| M3x40 SHCS | 8 | 13 | Stainless Steel 304 |
| M2 nut | 60 | 66 | Stainless Steel 304 |
| M3 nut | 150 | 165 | Stainless Steel 304 |
| M4 nut | 1 | 3 | Stainless Steel 304 |
| M5 nut | 4 | 9 | Stainless Steel 304 |
| M3x6x0.5 shim/washer | 42 | 47 | Stainless Steel 304 |
| M4x8x0.5 shim/washer | 4 | 9 | Stainless Steel 304 |
| M5x10x0.5 shim/washer | 12 | 17 | Stainless Steel 304 |
| Brass Bushing ID5xOD8x10 | 1 | 1 | Stainless Steel 304 |
| M4x5x12 SHCS | 1 | 1 | Stainless Steel 304 |
| M4 Thumbscrew, 8mm thread | 1 | 1 | Stainless Steel 304 |
| M4 Knurled Nut | 3 | 3 | Stainless Steel 304 |
